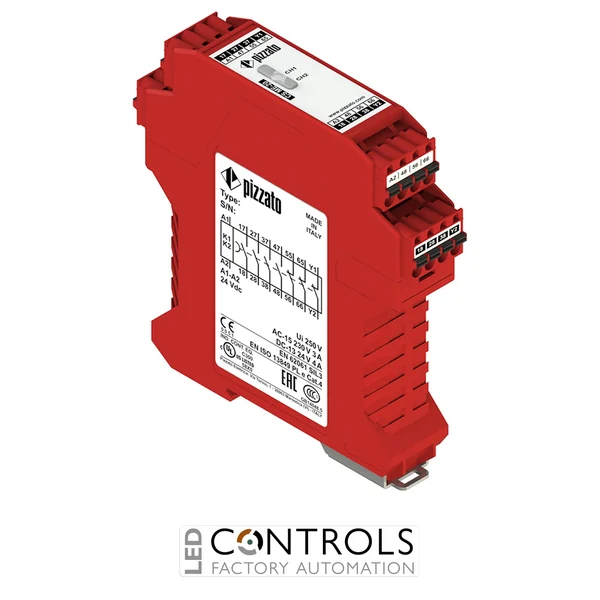

Pizzato CSME-20VU24-TF3 expansion module with delayed de-energising outputs, 4 NO and 2 NC contacts, designed for controlled shutdown in industrial safety systems.
£136.91
The Pizzato CSME-20VU24-TF3 is a compact and advanced safety expansion module designed to increase the number of safety outputs available from industrial safety relay systems while providing a fixed time delay function. As part of the Pizzato CS ME-20 safety expansion module series, it provides delayed safety contacts for machinery applications requiring controlled shutdown sequences, delayed release and enhanced operator protection.
The CSME-20VU24-TF3 is designed for use with compatible safety monitoring modules and provides 4 normally open safety contacts, 2 normally closed signalling contacts and 1 normally closed feedback contact. Its delayed-at-de-energizing function allows machine builders to implement controlled stopping procedures and safe release operations within industrial automation systems.
With a 24 VDC supply voltage, screw terminal connections and a compact 22.5 mm DIN rail housing, the CSME-20VU24-TF3 is ideal for OEM machine builders, automation engineers and control panel manufacturers requiring additional delayed safety outputs while conserving valuable cabinet space.
Safety expansion modules such as the Pizzato CSME-20VU24-TF3 allow machine designers to expand safety relay outputs while adding controlled time delay functionality. This enables safe shutdown procedures, delayed actuator release and coordinated machine protection sequences.
The CS ME-20 series is designed for industrial automation environments where dependable safety switching, compact installation and controlled timing functions are required. The CSME-20VU24-TF3 provides a practical solution for complex machinery safety systems requiring delayed outputs.
| Voltage | 24 V |
|---|---|
| Series | CS ME |
| Product type | Safety expansion module with delayed outputs |
| Supply voltage | 24 V DC |
| Function | Contact expansion with delayed de-energising (TF3) |
| Contact configuration | 4 NO + 2 NC + 1 NC feedback |
| Mounting type | DIN rail |
| Connection type | Screw terminals |
| Application | Industrial safety circuits requiring controlled shutdown |
| HS Code | 85369095 |
The Pizzato CSME-20VU24-TF3 is a safety expansion module used to increase safety outputs while providing delayed de-energizing functions in industrial machine safety systems.
The module operates with a 24 VDC supply voltage.
The CSME-20VU24-TF3 provides a delayed at de-energizing safety function with a fixed 3 second delay.
The module provides 4 normally open safety contacts, 2 normally closed signalling contacts and 1 feedback contact.
The module is typically installed inside electrical control cabinets using DIN rail mounting as part of industrial safety systems.
Pizzato safety expansion modules are widely used in industrial automation systems to increase safety output capacity while providing reliable delayed control functions for modern machinery.{ "@context": "https://schema.org/", "@type": "Product", "name": "Pizzato CSME-20VU24-TF3 Safety Expansion Module", "sku": "CSME-20VU24-TF3", "mpn": "CSME-20VU24-TF3", "brand": { "@type": "Brand", "name": "Pizzato Elettrica" }, "category": "Safety Expansion Modules", "description": "Pizzato CSME-20VU24-TF3 safety expansion module with 4NO+2NC delayed safety outputs and 24 VDC supply for industrial machine safety applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Supply voltage", "value": "24 VDC" }, { "@type": "PropertyValue", "name": "Safety outputs", "value": "4 NO + 2 NC" }, { "@type": "PropertyValue", "name": "Feedback contact", "value": "1 NC" }, { "@type": "PropertyValue", "name": "Timing function", "value": "Delayed at de-energizing" }, { "@type": "PropertyValue", "name": "Delay time", "value": "3 seconds" }, { "@type": "PropertyValue", "name": "Safety performance", "value": "SIL 3 / PL e / Category 4" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Pizzato CSME-20VU24-TF3 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Pizzato CSME-20VU24-TF3 is a safety expansion module used to increase safety outputs while providing delayed de-energizing functions in industrial machine safety systems." } }, { "@type": "Question", "name": "What supply voltage does the CSME-20VU24-TF3 require?", "acceptedAnswer": { "@type": "Answer", "text": "The module operates with a 24 VDC supply voltage." } }, { "@type": "Question", "name": "What type of timing function does this module provide?", "acceptedAnswer": { "@type": "Answer", "text": "The CSME-20VU24-TF3 provides a delayed at de-energizing safety function with a fixed 3 second delay." } }, { "@type": "Question", "name": "How many safety contacts does this module provide?", "acceptedAnswer": { "@type": "Answer", "text": "The module provides 4 normally open safety contacts, 2 normally closed signalling contacts and 1 feedback contact." } }, { "@type": "Question", "name": "Where is the CSME-20VU24-TF3 installed?", "acceptedAnswer": { "@type": "Answer", "text": "The module is typically installed inside electrical control cabinets using DIN rail mounting as part of industrial safety systems." } } ] }
