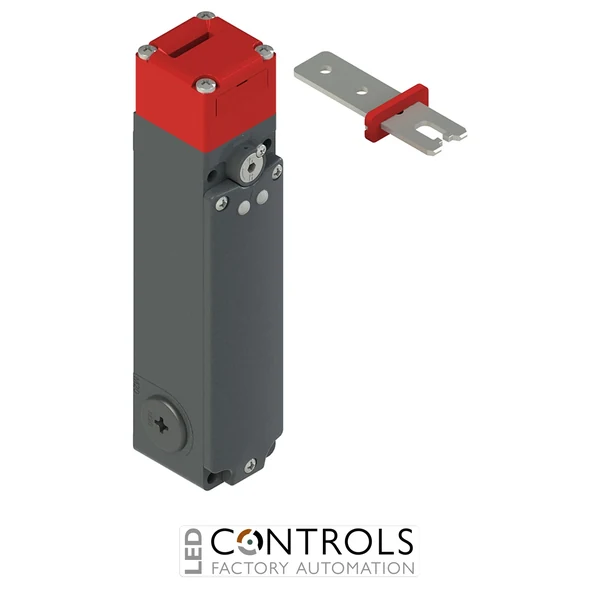

Why Choose the Pizzato FG60AD1D0Z-F20 Safety Interlock Switch?
The Pizzato FG60AD1D0Z-F20 is a heavy-duty safety interlock switch with solenoid locking, designed for industrial machine guard monitoring and controlled access protection. Part of the robust Pizzato FG series, this model combines dependable guard locking, positive opening safety contacts and rugged metal construction for demanding industrial automation environments.
Supplied complete with a straight F20 actuator, the FG60AD1D0Z-F20 is suitable for machine guards, safety gates and hazardous area access systems where reliable locking and monitored safety operation are essential. The rotating head design allows flexible installation in confined machinery layouts and complex guard configurations.
This model operates using a 24 VAC/DC solenoid supply and features a locked actuator with de-energised solenoid operating principle. Positive opening contacts help support compliance with industrial machinery safety standards while improving operator protection.
Key Advantages
- Heavy-duty safety interlock switch with solenoid lock.
- Straight F20 actuator included.
- 1 NO + 1 NC actuator contacts and 1 NO + 1 NC solenoid contacts.
- Rotating head for flexible installation orientation.
- Positive opening contacts for dependable machine isolation.
- Robust metal housing for demanding industrial environments.
- IP67 protection rating against dust and water ingress.
- Designed for industrial machine guards and safety doors.
Key Features
- Pizzato FG series safety switch.
- Solenoid locking mechanism.
- Separate actuator safety interlock design.
- Straight F20 actuator supplied.
- Positive opening contacts compliant with EN 60947-5-1.
- Metal housing with three M20 x 1.5 cable entries.
- IP67-rated enclosure.
- Locked with de-energised solenoid operation.
- Without LED indication.
Engineered for Industrial Guard Locking
The Pizzato FG60AD1D0Z-F20 is designed for applications where machine guards must remain locked until hazardous movement has safely stopped. Its monitored solenoid locking mechanism helps prevent unintended access to dangerous machinery during operation.
The included F20 actuator, rugged metal construction and positive opening contacts make this switch suitable for packaging machinery, conveyor systems, robotic cells and automated manufacturing lines requiring dependable safety integration.
Typical Applications
- Machine safety guard locking.
- Industrial access doors and safety gates.
- Packaging and processing machinery.
- Automated conveyor systems.
- Robotic production cells.
- Hazardous area access control.
