Why Choose the Pizzato FG60AD1D0Z Safety Interlock Switch?

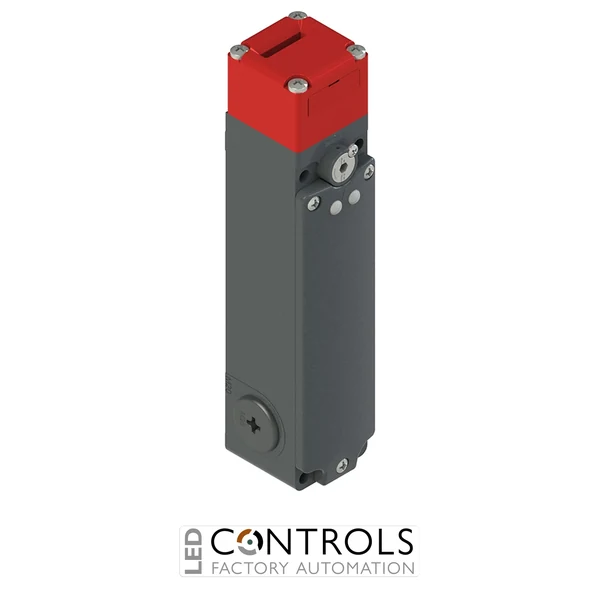

The Pizzato FG60AD1D0Z is a heavy-duty safety interlock switch with solenoid locking, engineered for industrial machine guard monitoring and controlled access protection. As part of the proven Pizzato FG series, this model combines rugged metal construction, dependable guard locking and positive opening safety contacts for demanding industrial automation environments.
Designed with a reinforced metal housing and separate actuator configuration, the FG60AD1D0Z is suitable for machine guards, safety gates and hazardous area access systems where reliable locking and monitored safety operation are essential. The rotating head design provides flexible installation options in confined machine layouts.
This model features a solenoid-operated locking mechanism, positive opening contacts and a 24 VAC/DC operating voltage. The switch operates with a locked actuator when the solenoid is de-energised, helping maintain machine safety during power-loss conditions.
Key Advantages
- Heavy-duty safety interlock switch with solenoid lock.
- 1 NO + 1 NC actuator contacts and 1 NO + 1 NC solenoid contacts.
- Positive opening safety contacts for dependable machine isolation.
- Rotating head for flexible installation orientation.
- Robust metal housing for demanding industrial environments.
- IP67 protection rating against dust and water ingress.
- Designed for industrial machine guards and safety doors.
- Suitable for integration into PL e safety systems.
Key Features
- Pizzato FG series safety switch.
- Solenoid locking mechanism.
- Separate actuator safety interlock design.
- Positive opening contacts compliant with EN 60947-5-1.
- Metal housing with three M20 x 1.5 cable entries.
- Rotating head design.
- IP67-rated enclosure.
- Locked with de-energised solenoid working method.
- Without LED indication.
Engineered for Industrial Guard Locking
The Pizzato FG60AD1D0Z is designed for applications where machine guards must remain locked until hazardous movement has safely stopped. Its monitored solenoid locking mechanism helps prevent unintended access to dangerous machinery during operation.
The combination of positive opening contacts, rugged metal construction and industrial safety functionality makes this switch suitable for packaging machinery, conveyor systems, robotic cells and automated manufacturing lines requiring dependable safety integration.
Typical Applications
- Machine safety guard locking.
- Industrial access doors and safety gates.
- Packaging and processing machinery.
- Automated conveyor systems.
- Robotic production cells.
- Hazardous area access control.
