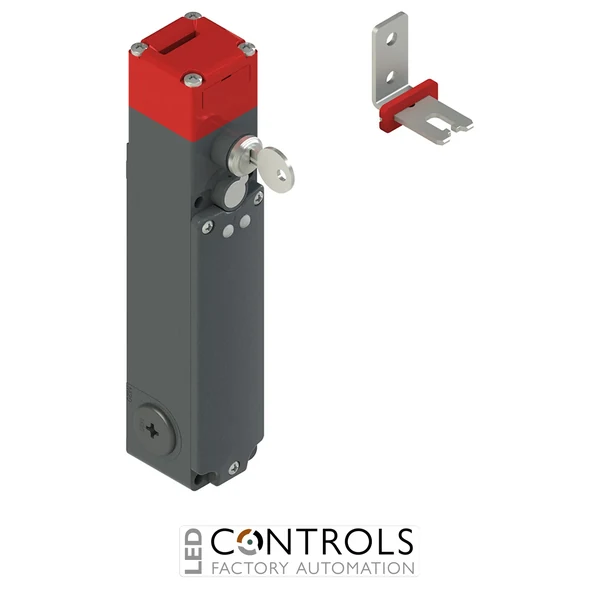

Why Choose the Pizzato FG60AD5D2Z-F21 Safety Interlock Switch?
The Pizzato FG60AD5D2Z-F21 is a high-performance FG series safety interlock switch with separate actuator and guard locking, engineered for industrial machinery requiring secure access control and dependable operator protection. Manufactured by Pizzato Elettrica, this heavy-duty safety switch combines a robust metal housing with a solenoid-operated locking mechanism for demanding machine safety applications.
Designed for machine guards, protective doors, sliding panels and hazardous-area access points, the FG60AD5D2Z-F21 helps prevent access while dangerous machine movement or residual energy remains present. Its separate actuator design enables flexible installation across industrial automation systems and safeguarded production equipment.
With IP67 environmental protection, 230 V AC solenoid operation, 1NO + 1NC actuator-operated contacts, 1NO + 1NC solenoid-operated contacts, integrated key release and a supplied VF KEYF21 right-angled actuator, the FG60AD5D2Z-F21 provides dependable guard locking and advanced monitoring for industrial safety systems.
Key Advantages
- Heavy-duty FG series guard locking switch for industrial machinery safety.
- Metal housing construction for durability in demanding industrial environments.
- IP67 ingress protection suitable for dusty and wet operating conditions.
- 1NO + 1NC actuator-operated contacts for guard position monitoring.
- 1NO + 1NC solenoid-operated contacts for lock status and control signalling.
- 230 V AC solenoid supply for industrial machine control systems.
- Supplied with VF KEYF21 right-angled actuator for simplified installation.
Key Features
- Pizzato FG series safety switch with separate actuator and lock.
- D operating principle, locked actuator with de-energised solenoid.
- 1NO + 1NC contacts moved by actuator.
- 1NO + 1NC contacts moved by solenoid.
- Rotating head with lock auxiliary release device.
- Three M20 x 1.5 threaded conduit entries for flexible wiring.
- Positive-opening contacts suitable for safety-related applications.
- Without LED indication for applications where local indication is not required.
Reliable Guard Locking for Industrial Machinery
Guard locking safety switches are used to prevent access to hazardous machine areas while dangerous movement or residual risks remain present. The FG60AD5D2Z-F21 combines robust mechanical locking with actuator and solenoid monitoring contacts, supporting safe integration into industrial safety circuits and machine control systems.
Its durable metal enclosure, IP67 protection and supplied right-angled actuator make it suitable for demanding industrial machinery where dependable operation and flexible installation are required. The D working method keeps the actuator locked when the solenoid is de-energised, helping maintain safe guard locking conditions.
Typical Applications
- Industrial machine guard doors and protective covers.
- Packaging and automated production machinery.
- Robotic cells and safeguarded automation systems.
- Conveyor and material handling systems.
- Industrial manufacturing and processing equipment.
- Machinery requiring robust guard locking and monitoring functionality.
