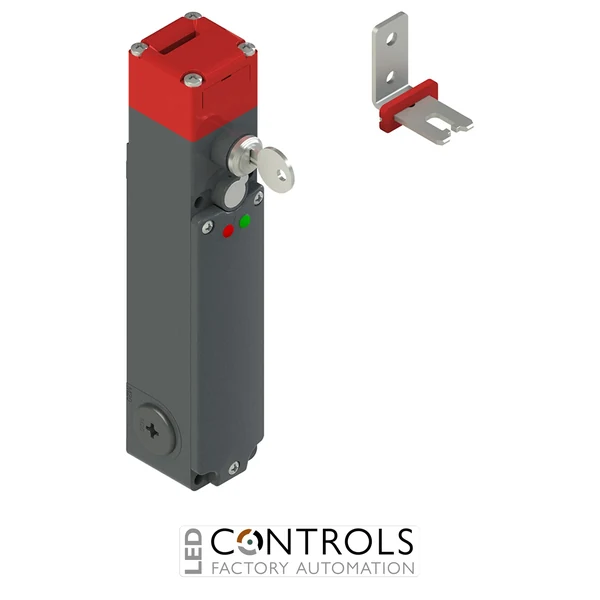

Why Choose the Pizzato FG60AD5D3B-F21 Safety Switch?
The Pizzato FG60AD5D3B-F21 is a premium safety interlock switch with guard locking, engineered to provide secure access control and advanced operator protection for industrial machinery. As part of the highly regarded Pizzato FG series, this switch is designed to ensure machine guards remain locked while hazardous motion is present.
Manufactured with a rugged metal housing and precision safety components, the FG60AD5D3B-F21 delivers dependable performance in demanding industrial environments. The device combines mechanical interlocking with electrical safety monitoring, helping reduce operational risk and maintain compliance with modern machine safety standards.
This model features a de-energised solenoid locking system, integrated status LEDs and a rotating head with escape release functionality, making it ideal for advanced safety applications requiring reliable guard monitoring and controlled access.
Key Advantages
- Safety interlock with guard locking for hazardous machine access points.
- Durable metal enclosure designed for industrial environments.
- De-energised solenoid locking improves fail-safe operation.
- Integrated LED indication for solenoid status monitoring.
- Escape release button enhances operator safety.
- Supports compliance with modern machine safety standards.
Key Features
- Pizzato FG series safety switch.
- Separate actuator with locking function.
- 3NC actuator contacts and 1NC solenoid contact.
- Integrated 24 Vac/dc solenoid.
- Rotating head with escape pushbutton.
- 2 green LEDs for solenoid status indication.
- Heavy-duty metal housing with three M20 cable entries.
- IP67 protection rating for demanding environments.
Advanced Guard Locking for Industrial Machinery
The FG60AD5D3B-F21 is designed to prevent access to hazardous machine areas until safe operating conditions are achieved. Its guard locking mechanism helps minimise operator risk while ensuring reliable safety monitoring for industrial machinery and automation systems.
The switch includes features such as a rotating head, escape release button and LED status indication, allowing flexible installation and enhanced operational safety in demanding applications.
Typical Applications
- Industrial machine guarding systems.
- Automated production and packaging machinery.
- Robotic safety enclosures and access gates.
- Conveyor and material handling systems.
- High-risk industrial automation environments.
- OEM machinery and safety integration projects.
