Why Choose the Pizzato FG60DD6D0B-F28 Safety Switch?

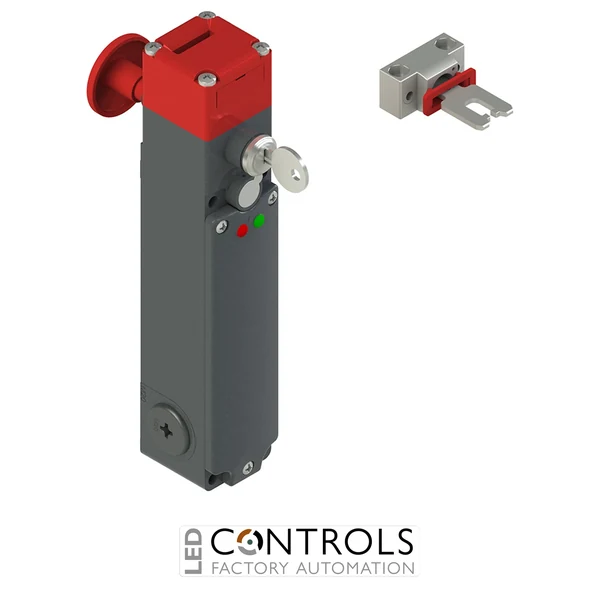

The Pizzato FG60DD6D0B-F28 is a robust FG series safety interlock switch with solenoid locking, engineered for industrial machine guarding and controlled access applications. Designed for use on safety doors, protective guards and automated machinery access points, this switch helps ensure operators cannot access hazardous areas until safe operating conditions are achieved.
This model combines high mechanical durability with safety-rated contact monitoring and electrically controlled locking. The separate actuator system provides dependable guard position detection, while the integrated locking mechanism helps prevent premature access to dangerous machine zones during operation or run-down conditions.
Featuring a durable metal housing, 24 V AC/DC solenoid supply, IP67 environmental protection and a front emergency release F28 actuator system, the FG60DD6D0B-F28 is suitable for demanding automation and machine safety installations across industrial environments.
Key Advantages
- Heavy-duty guard locking safety switch for industrial machinery.
- Separate actuator system suitable for hinged and sliding guards.
- Power-to-lock safety locking mechanism for controlled access protection.
- 24 V AC/DC operation for integration into modern control systems.
- IP67 protection rating for harsh industrial environments.
- Strong metal housing designed for long service life in automation systems.
Key Features
- Pizzato FG series interlock switch with solenoid lock.
- B operating principle, actuator unlocked when solenoid is de-energised.
- 2NC safety contacts operated by actuator.
- 1NO + 1NC auxiliary contacts operated by solenoid.
- 24 V AC/DC power supply.
- Rotating head for flexible installation orientation.
- Front emergency release F28 system.
- Metal housing with industrial-grade durability.
Reliable Machine Guarding for Industrial Automation
Safety interlock switches with solenoid locking are widely used in automated machinery where dangerous motion or hazardous processes continue after a stop signal has been issued. The FG60DD6D0B-F28 helps prevent access until machinery reaches a safe state, improving operator protection and supporting compliance with machine safety standards.
Its rugged construction and flexible mounting options make it suitable for use across production lines, robotic systems, conveyors and industrial processing equipment where reliable guard monitoring and locking are essential.
Typical Applications
- Industrial safety guard doors and machine enclosures.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- Industrial access gates and perimeter protection.
- Safety circuits requiring monitored locking functions.
