Why Choose the Pizzato FS1896E120-F7 Safety Switch?

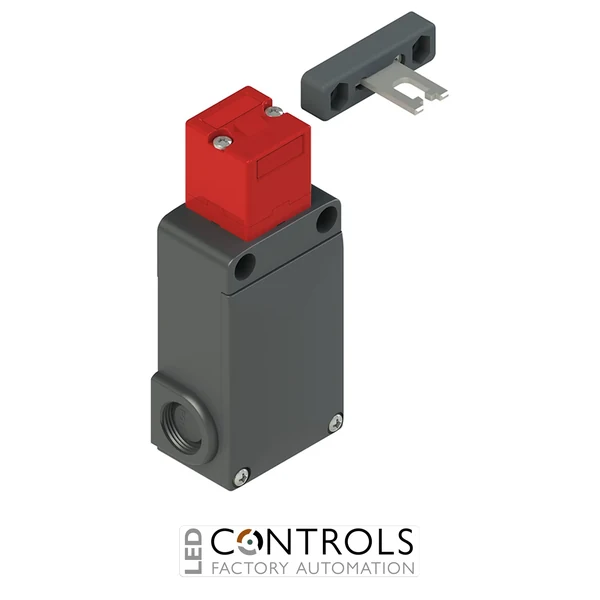

The Pizzato FS1896E120-F7 is a compact and reliable safety interlock switch with separate actuator and solenoid locking, designed to protect operators and control access to hazardous machinery. As part of the trusted Pizzato FS series, it ensures that safety guards remain securely locked until safe operating conditions are met.
This model features an energised solenoid locking mechanism, meaning the actuator remains locked while power is applied. This allows controlled and programmable access through safety relays or PLC-based systems, making it ideal for automated production environments and machine safety applications.
With a 120 V AC/DC supply, IP67 protection rating and a contact configuration of 1 NO and 1 NC solenoid contacts, the FS1896E120-F7 is engineered for dependable performance and integration into modern industrial safety circuits.
Key Advantages
- Energised solenoid locking enables controlled and programmable guard access.
- Positive opening contacts ensure reliable safety disconnection.
- Compact design suitable for confined installations.
- IP67 protection rating for harsh industrial environments.
- Jointed actuator allows flexible installation alignment.
- Robust technopolymer housing for long service life.
Key Features
- Pizzato FS series safety switch with solenoid lock.
- Model: FS1896E120-F7
- Separate actuator design for machine guard applications.
- Contact configuration: 1 NO + 1 NC (solenoid).
- 120 V AC/DC solenoid supply.
- Energised locking (power to lock).
- Jointed actuator adjustable in one direction.
- PG 13.5 threaded conduit entries.
Controlled Guard Access for Industrial Safety
The FS1896E120-F7 combines guard monitoring and locking functionality, ensuring that safety doors remain securely locked while hazardous machine movements are present. The energised locking design allows access to be controlled dynamically based on machine status and safety logic.
Its positive opening mechanism guarantees forced separation of contacts even under fault conditions such as welding, ensuring reliable performance in high-integrity safety systems and industrial automation applications.
Typical Applications
- Machine guard doors and safety gates.
- Industrial automation and robotics.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Safety enclosures and production lines.
- OEM machinery requiring controlled access.
