Why Choose the Pizzato FS1898D024-F7 Safety Switch?

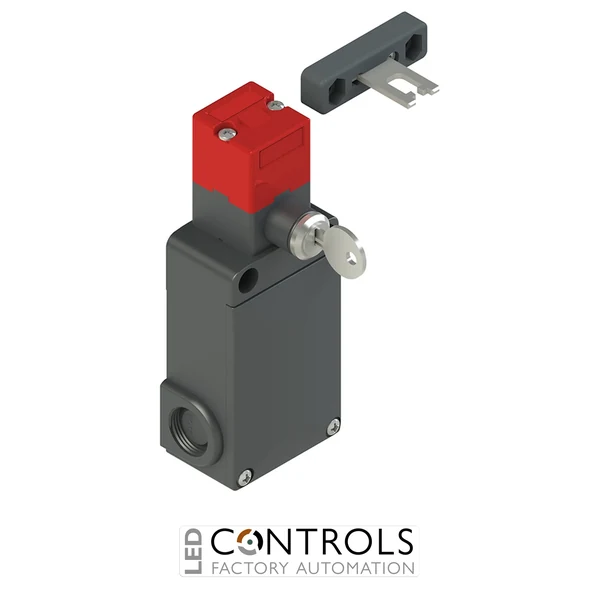

The Pizzato FS1898D024-F7 is a robust safety interlock switch with solenoid and separate actuator, designed to deliver secure guard locking and reliable safety monitoring in industrial machinery. As part of the durable Pizzato FS safety switch series, it ensures hazardous machine movement is prevented while guards are open.
This variant operates using a power-to-lock principle (locked with de-energised solenoid), meaning the actuator remains securely locked when power is removed. This configuration is ideal for controlled access applications where the machine must remain locked unless actively released.
With a 24 V AC/DC solenoid supply, rotating head and durable technopolymer housing, the FS1898D024-F7 provides flexible installation and dependable performance in demanding industrial environments.
Key Advantages
- Reliable safety interlock with solenoid guard locking.
- Power-to-lock operation for controlled machine access.
- 24 V AC/DC solenoid compatible with industrial systems.
- Separate actuator design for flexible installation.
- Robust construction for long service life.
- Compliant with EN ISO 14119 safety standards.
Key Features
- Pizzato FS series safety switch with separate actuator.
- Power-to-lock (locked when de-energised).
- 24 V AC/DC operating voltage.
- 1 NO + 1 NC contact block controlled by solenoid.
- Rotating head for flexible mounting orientation.
- Technopolymer housing with high mechanical strength.
- IP67 protection rating for harsh environments.
- Three PG13.5 threaded cable entries.
Controlled Guard Locking for Industrial Safety
The FS1898D024-F7 ensures that machinery cannot operate while guards are open, significantly reducing the risk of accidents. Its power-to-lock design ensures the guard remains secured without power, providing controlled unlocking when required for safe operation.
The separate actuator and rotating head design allow flexible installation across a wide range of machine guarding configurations, making it suitable for OEM machine builders and automation engineers.
Typical Applications
- Machine guarding and safety door interlocking.
- Automated production lines and robotics.
- Packaging and processing equipment.
- Conveyor systems and material handling.
- Industrial safety enclosures and access points.
- OEM machinery and automation systems.
