Why Choose the Pizzato FS2096D024-F8 Safety Interlock Switch?

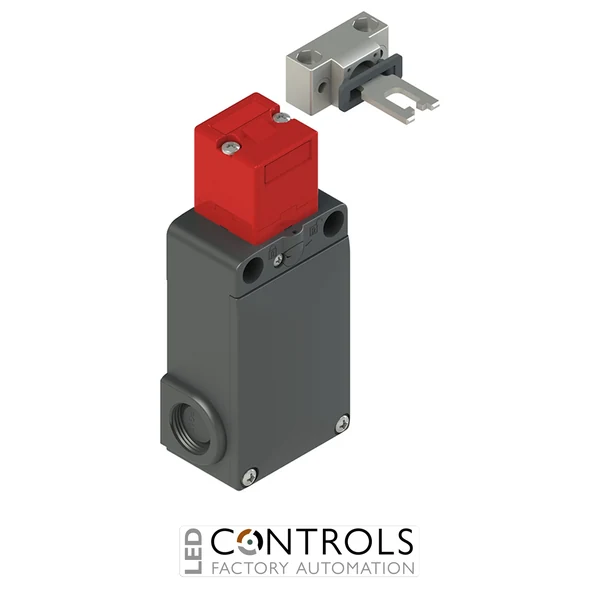

The Pizzato FS2096D024-F8 is a high performance safety switch with separate actuator and guard locking, designed for advanced machine safety applications. As part of the robust Pizzato FS series, it provides controlled access to hazardous areas by locking guards until safe conditions are met.
This model integrates a solenoid operated locking mechanism, ensuring that machine guards remain securely locked during operation. Its durable technopolymer housing and industrial grade design make it suitable for demanding environments where reliability and safety compliance are critical.
With a 24 V AC/DC supply and a 1 NO + 2 NC contact configuration, the FS2096D024-F8 supports flexible safety circuit design. The unit features a D working method, meaning the actuator remains locked when the solenoid is de-energised, providing fail safe operation in safety critical systems.
Key Advantages
- Guard locking safety switch for controlled access to hazardous machinery.
- Solenoid operated locking mechanism for enhanced safety control.
- D working method ensures fail safe locking when power is removed.
- 1 NO + 2 NC contacts for flexible safety circuit integration.
- IP67 protection for resistance to dust and water ingress.
- Durable technopolymer housing for industrial environments.
Key Features
- Pizzato FS series safety switch with guard locking.
- Separate actuator system for machine guarding.
- Solenoid activated contact block.
- 1 NO + 2 NC slow action contacts.
- 24 V AC/DC operating voltage.
- Rotating head for flexible mounting orientation.
- Positive opening contacts for safety compliance.
Advanced Guard Locking for Industrial Safety
Safety interlock switches with guard locking, such as the FS2096D024-F8, are essential in applications where hazardous motion must be prevented until a machine has reached a safe state. The solenoid locking mechanism ensures that access points cannot be opened while the machine is running.
The D working principle provides fail safe operation by keeping the guard locked when power is removed. This is particularly important in emergency situations, ensuring that machinery cannot be accessed until it is fully safe.
Typical Applications
- Machine guard doors requiring controlled access.
- Packaging and processing machinery.
- Automated production lines.
- Robotic cells and hazardous zones.
- Material handling and conveyor systems.
- Safety interlock systems with guard locking requirements.
