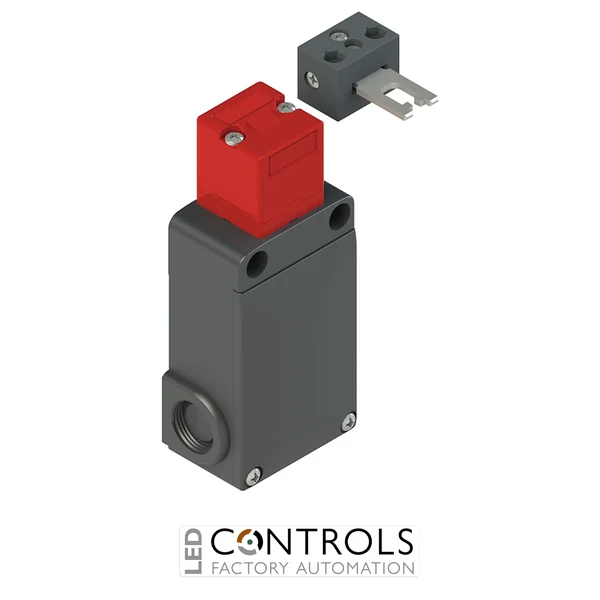

Why Choose the Pizzato FS2096E230-F3 Safety Switch?
The Pizzato FS2096E230-F3 is a high-performance safety interlock switch with solenoid locking, designed to provide secure guard locking and controlled access in industrial machinery. As part of the robust Pizzato FS series, it ensures that safety guards remain locked until hazardous conditions are fully eliminated.
This model operates with a 230 V AC solenoid and features a locked actuator with energised solenoid principle, preventing access during machine operation. The F3 variant includes a jointed actuator adjustable in two directions, making it ideal for installations where precise alignment is difficult or requires flexibility.
Built with a durable technopolymer housing and rotating head, the FS2096E230-F3 integrates seamlessly into PLC systems, safety relays and control panels, delivering reliable long-term performance in demanding industrial environments.
Key Advantages
- Solenoid locking safety switch for secure machine guarding.
- 230 V AC operation suitable for industrial control circuits.
- 1NO + 2NC contact configuration for advanced safety monitoring.
- Jointed actuator (F3) adjustable in two directions.
- Prevents access to hazardous areas during machine operation.
- Supports compliance with EN ISO 14119 safety standards.
Key Features
- Pizzato FS series safety interlock switch.
- Solenoid locking mechanism with energised locking function.
- 230 V AC solenoid supply.
- 1 normally open + 2 normally closed contacts (solenoid operated).
- Jointed actuator adjustable in two directions for flexible installation.
- IP67 protection rating for harsh industrial environments.
- Technopolymer housing with rotating head for durability.
- Three PG13.5 threaded conduit entries for flexible wiring.
Flexible Guard Locking for Complex Machinery
The FS2096E230-F3 ensures that machine guards remain securely locked while hazardous operations are active. Its energised solenoid locking system prevents premature access and only allows entry when safe conditions are verified, significantly reducing risks to personnel and equipment.
The jointed actuator adjustable in two directions makes this model particularly suitable for installations where alignment is challenging, such as hinged or offset guard doors, providing maximum flexibility in machine design.
Typical Applications
- Machine guarding and safety access systems.
- Automated production lines and robotic cells.
- Packaging and processing machinery.
- Conveyor systems and material handling.
- Industrial safety enclosures and access doors.
- OEM machinery and automation integration.
