Why Choose the Pizzato FS2098D024-F8M2 Safety Interlock Switch?
The Pizzato FS2098D024-F8M2 is a high-performance safety interlock switch with solenoid locking, engineered for secure guard monitoring in industrial machinery and automation systems. As part of the robust Pizzato FS series, it ensures hazardous areas remain inaccessible until safe operating conditions are confirmed.
This model uses a D-type working method (power-to-release), meaning the actuator remains locked when the solenoid is de-energised. This fail-safe design ensures guards stay secured in the event of power loss, enhancing operator safety in critical applications.
With a 24 V AC/DC supply, durable technopolymer housing and IP67 protection rating, the FS2098D024-F8M2 is ideal for demanding industrial environments. It features a rotating head with auxiliary release and universal actuator compatibility for flexible installation.
Key Advantages
- Reliable safety interlock switch with solenoid locking.
- Fail-safe power-to-release operation for enhanced safety.
- Dual monitoring of guard position and locking status.
- High durability for long service life in industrial environments.
- Flexible installation with rotating head design.
- Supports compliance with modern machinery safety standards.
Key Features

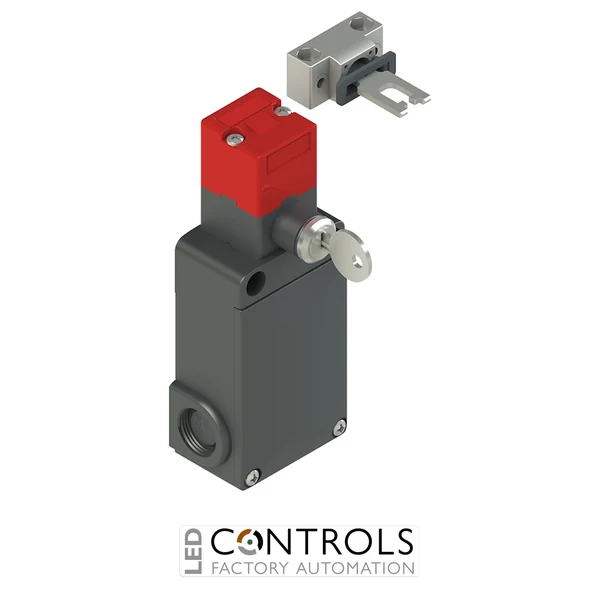

- Pizzato FS series safety switch with separate actuator.
- 24 V AC/DC solenoid supply.
- 1 NO + 2 NC contact configuration actuated by solenoid.
- Positive opening safety contacts.
- Locked actuator with de-energised solenoid (fail-safe D method).
- Rotating head with auxiliary lock release device.
- Universal actuator compatibility.
- Three M20 x 1.5 threaded conduit entries.
- IP67 protection rating.
Fail-Safe Guard Locking for Industrial Machinery
Safety interlock switches such as the FS2098D024-F8M2 are essential for protecting operators and ensuring safe machine operation. They prevent access to hazardous zones while machinery is running and only allow access once safe conditions are achieved.
The fail-safe locking mechanism ensures the actuator remains secured even during power loss, while the 1 NO and 2 NC contact configuration provides reliable feedback for integration with safety PLCs and control systems.
Typical Applications
- Machine guarding and safety interlock systems.
- Automated production and assembly lines.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Robotic cells and CNC machinery.
- Industrial safety zones and controlled access systems.
