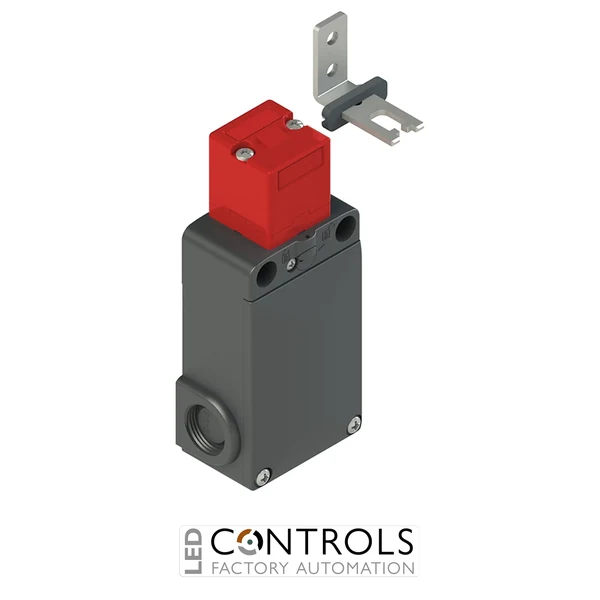

Why Choose the Pizzato FS2196D230-F1 Safety Interlock Switch?
The Pizzato FS2196D230-F1 is a high-performance safety interlock switch with solenoid locking, designed for safeguarding industrial machinery and access points. As part of the advanced Pizzato FS series, it combines robust construction with precise switching reliability for demanding automation environments.
This model features a separate actuator with guard locking, ensuring that machine access points remain securely locked until safe conditions are met. Its de-energised solenoid locking principle provides fail-safe operation, making it ideal for applications requiring high levels of safety integrity.
With a 230 V AC solenoid supply, IP67 protection rating, and 3 normally closed safety contacts, the FS2196D230-F1 is widely used in machine guarding systems, production lines and industrial automation where reliable safety control is essential.
Key Advantages
- Guard locking safety switch for high-risk machinery.
- De-energised solenoid locking ensures fail-safe operation.
- 3 NC safety contacts for redundant safety circuits.
- Robust technopolymer housing for industrial environments.
- IP67 protection rating for dust and water resistance.
- Designed for integration into machine safety systems and PLCs.
Key Features
- Pizzato FS series safety switch with guard locking.
- 230 V AC solenoid supply.
- 3 NC contacts for safety monitoring.
- Positive opening contacts for reliable disconnection.
- Rotating head for flexible actuator positioning.
- Angled actuator compatibility.
- Three PG13.5 threaded conduit entries.
- Designed for machine guarding and access control.
Advanced Guard Locking for Industrial Safety
Safety interlock switches like the Pizzato FS2196D230-F1 are critical for protecting operators by ensuring that hazardous machine movements are prevented while access doors are open. The guard locking mechanism ensures that access points remain secured until machinery has safely stopped.
The de-energised solenoid principle ensures that in the event of a power loss, the actuator remains locked, maintaining safety integrity. This makes the switch suitable for high-risk applications requiring controlled access and strict compliance with safety standards.
Typical Applications
- Machine guard doors and safety enclosures.
- Automated production lines and robotic cells.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Industrial access control points.
- OEM machinery requiring safety interlocking.
