Why Choose the Pizzato FS3096D024-F2 Safety Switch?

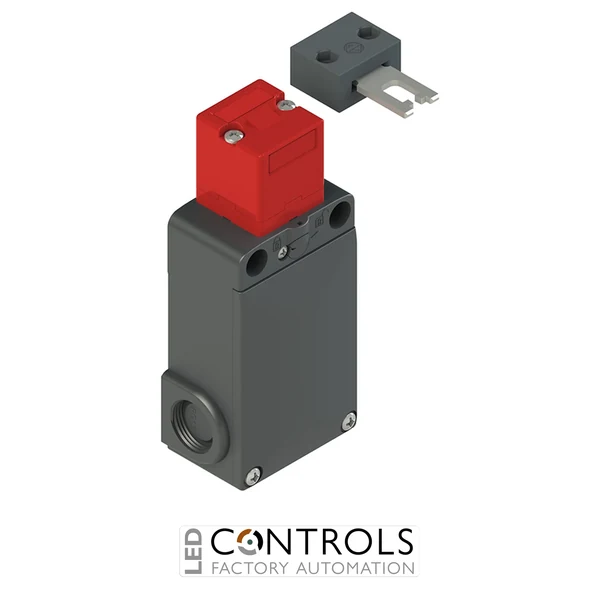

The Pizzato FS3096D024-F2 is a high-reliability safety interlock switch with solenoid locking and separate actuator, designed for secure guard monitoring and controlled access in industrial machinery. As part of the proven Pizzato FS series, it ensures that machine guards remain locked during operation, preventing access to hazardous areas and enhancing operator safety.
This model operates with a 24 V AC/DC solenoid and uses a de-energised locking principle, meaning the actuator remains locked when power is removed. This fail-safe design ensures that safety is maintained even during power loss or emergency stop conditions, making it suitable for safety-critical applications.
The FS3096D024-F2 is supplied with a dedicated actuator variant (F2 type), allowing reliable engagement with machine guards. Its robust technopolymer housing, rotating head and IP67 protection rating ensure long-term performance in demanding industrial environments.
Key Advantages
- Safety interlock with solenoid locking for controlled access to hazardous zones.
- 24 V AC/DC operation suitable for industrial control systems.
- Fail-safe locking (power-to-release) ensures maximum safety integrity.
- Supplied with F2 actuator for secure guard engagement.
- Prevents machine operation when guards are open.
- Durable construction for long-term industrial reliability.
Key Features
- Pizzato FS series safety interlock switch.
- Model: FS3096D024-F2.
- Solenoid locking mechanism with 24 V AC/DC supply.
- Contact configuration: 2 NC (actuator) + 1 NC (solenoid).
- F2 actuator included for machine guard applications.
- Rotating head for flexible installation orientation.
- Positive opening contacts for safety circuits.
- Three PG13.5 threaded conduit entries for wiring.
Fail-Safe Guard Locking for Industrial Safety
The FS3096D024-F2 ensures that machinery cannot operate unless guards are securely closed and locked. Its fail-safe design keeps the actuator locked when power is removed, preventing unintended access during power outages or emergency stop conditions.
The F2 actuator variant enables reliable engagement with safety doors, while the solenoid-controlled release ensures that access is only granted when the machine reaches a safe state. This makes it ideal for high-risk industrial machinery and safety-critical automation systems.
Typical Applications
- Machine guarding and safety door interlocking.
- Automated production lines and robotic systems.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- CNC machines and industrial equipment.
- Access control for hazardous industrial zones.
