Why Choose the Pizzato FS3096E120-F2 Safety Switch?

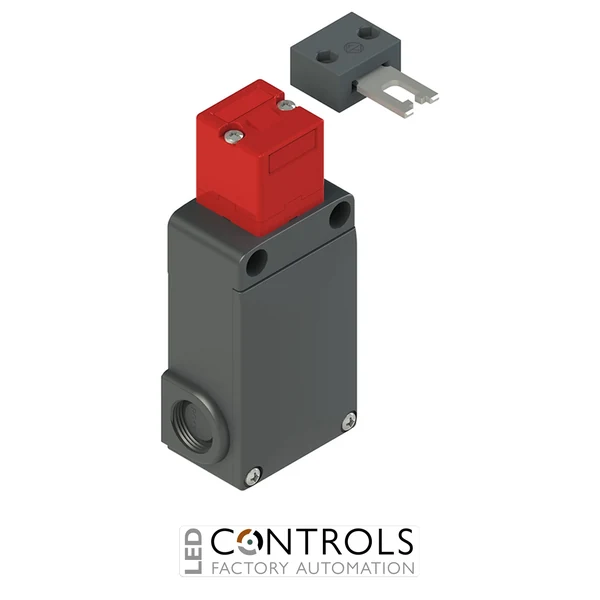

The Pizzato FS3096E120-F2 is a robust safety interlock switch with separate actuator and solenoid locking, designed for high-integrity machine guarding and controlled access applications. As part of the proven Pizzato FS series, it ensures that hazardous machinery remains inaccessible until safe operating conditions are achieved.
This model features an energised solenoid locking mechanism, meaning the actuator remains locked while power is applied. This allows precise control through safety systems and PLC logic, making it ideal for automated industrial processes requiring managed access control.
With a 120 V AC/DC supply and a contact configuration of 2 NC contacts (actuator) and 1 NC contact (solenoid), the FS3096E120-F2 is engineered for integration into modern safety circuits requiring dependable performance and compliance with machinery safety standards.
Key Advantages
- Integrated solenoid locking system for controlled access to hazardous areas.
- Energised locking principle enables programmable safety control.
- Positive opening safety contacts for high safety integrity.
- Designed for 120 V AC/DC control circuits.
- IP67 protection rating for reliable operation in harsh environments.
- Flexible installation with rotating head and separate actuator.
Key Features
- Pizzato FS series safety switch with solenoid lock.
- Model: FS3096E120-F2
- Separate actuator design for flexible mounting.
- Contact configuration: 2 NC (actuator) + 1 NC (solenoid).
- 120 V AC/DC solenoid supply.
- Energised solenoid locking (power to lock).
- IP67 rated enclosure for dust and water resistance.
- Jointed actuator for secure mechanical engagement.
Controlled Guard Access for Industrial Safety
The FS3096E120-F2 combines guard monitoring and locking functionality, ensuring that safety doors remain securely locked while hazardous machine operations are in progress. The energised locking system allows access to be controlled dynamically by the machine’s safety logic.
Its positive opening mechanism ensures forced separation of contacts even in fault conditions such as welding, delivering reliable performance in high-integrity safety circuits and industrial automation systems.
Typical Applications
- Machine guard doors requiring controlled access.
- Industrial automation and robotic systems.
- Packaging and processing machinery.
- Conveyor and material handling systems.
- Safety enclosures and access gates.
- OEM machinery with advanced safety requirements.
