Why Choose the Pizzato FX693-E3D7M1 Safety Interlock Switch?

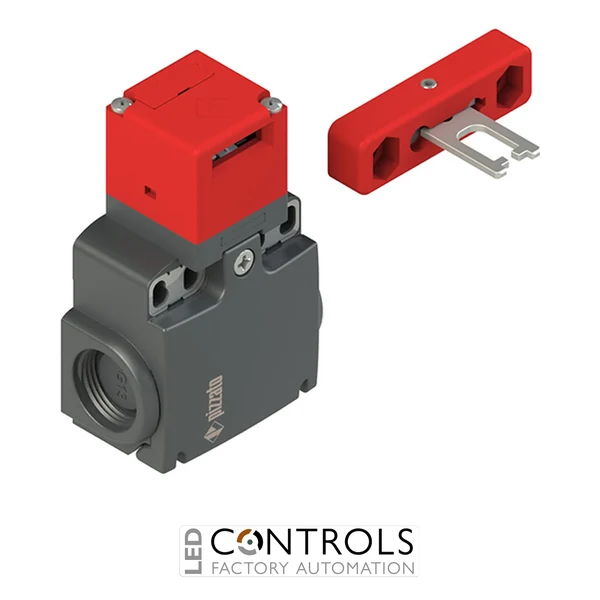

The Pizzato FX693-E3D7M1 is a high-performance safety interlock switch with separate actuator, designed for machine guarding and industrial safety systems. As part of the robust Pizzato FX series, it provides reliable position monitoring and ensures safe operation across automated machinery.
Engineered with a durable technopolymer housing and stainless steel external components, the FX693-E3D7M1 is built for long-term performance in harsh industrial environments. Its construction offers excellent resistance to corrosion, vibration and mechanical stress, making it suitable for demanding applications.
This model features a 1NO + 1NC slow-action contact configuration with positive opening contacts, ensuring dependable fail-safe operation. In the event of actuator disengagement or circuit interruption, the safety circuit is immediately opened to stop machinery and protect operators.
Key Advantages
- Reliable safety interlock switch with separate actuator.
- 1NO + 1NC contacts for flexible control and signalling.
- Positive opening mechanism for safety-critical applications.
- IP67 protection rating for harsh industrial environments.
- Durable construction with stainless steel external parts.
- Designed for long service life and consistent switching performance.
Key Features
- Pizzato FX series safety switch.
- Separate actuator design for machine guarding.
- 1 normally open + 1 normally closed contacts (slow action).
- Positive opening operation compliant with EN 60947-5-1.
- Non-detachable head with straight actuator configuration (E3D7M1 type).
- Technopolymer housing with reinforced structure.
- Dual PG13.5 conduit entries for flexible wiring.
- Operating temperature approx. -25°C to +80°C.
Reliable Machine Guard Interlocking
Safety interlock switches such as the FX693-E3D7M1 are essential for protecting operators by monitoring guard doors and access panels. When the actuator is removed or misaligned, the switch interrupts the control circuit and immediately stops machinery.
The positive opening contact system guarantees physical separation of contacts even in the event of internal failure, ensuring dependable safety performance in critical industrial applications.
Typical Applications
- Machine guarding and safety doors.
- Industrial automation and production machinery.
- Packaging and processing equipment.
- Access control on hazardous machinery.
- Conveyor and material handling systems.
- OEM machine building and safety circuits.
