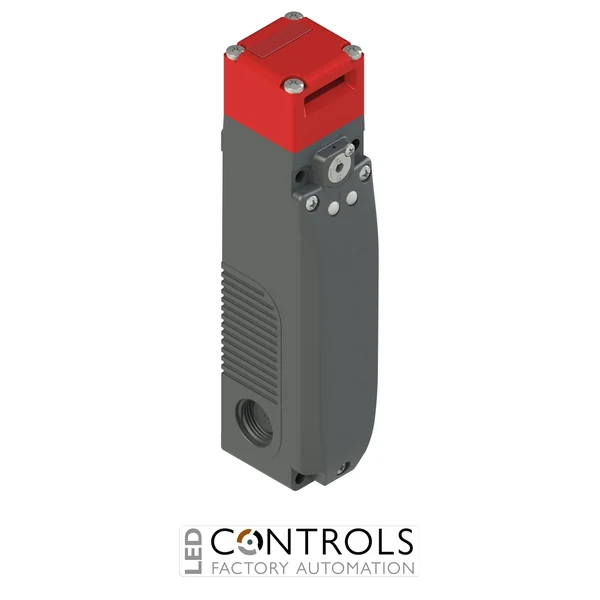

Why Choose the Pizzato FY60AD1D2A Safety Interlock Switch?
The Pizzato FY60AD1D2A is a high-performance industrial safety interlock switch with a separate actuator and electromagnetic guard locking system, designed to protect machine operators by preventing access to hazardous areas until safe conditions are met. As part of the advanced Pizzato FY series, it provides reliable guard monitoring and locking control for demanding industrial automation applications.
This device ensures that machine guards remain locked while dangerous movements are active, and only allows access once the system is safely stopped. It combines position detection with electrically controlled locking, making it ideal for high-risk machinery where immediate access prevention is critical for operator safety and compliance with modern safety standards.
The FY60AD1D2A uses a separate actuator system with solenoid-controlled lock, where the switch body is mounted on the fixed frame and the actuator is mounted on the moving guard. The solenoid controls locking and unlocking, ensuring the guard cannot be opened during hazardous machine states, even if the actuator is engaged.
Key Advantages
- High-security electromagnetic guard locking system.
- Separate actuator design for flexible installation.
- Prevents access until machine reaches safe stop condition.
- Suitable for sliding and hinged safety doors.
- High mechanical durability for industrial environments.
- IP67 protection for harsh industrial conditions.
Key Features
- Pizzato FY safety interlock switch series.
- Model: FY60AD1D2A.
- Electromagnetic locking with solenoid control.
- Separate actuator system for guard mounting.
- Dual contact system for safety and lock monitoring.
- Reinforced technopolymer housing.
- High retention force locking mechanism.
- Multiple cable entry options for installation flexibility.
Reliable Safety Control for Industrial Automation
The FY60AD1D2A ensures that machine guards remain locked while hazardous motion is present, preventing accidental or premature access. This significantly reduces operator risk in high-inertia or high-energy machinery environments.
Its integrated solenoid locking system ensures that even if the actuator is correctly positioned, the guard cannot be opened until the safety system confirms that all dangerous movement has fully stopped.
Typical Applications
- High-risk machine guard interlocking systems.
- Industrial robotic safety enclosures.
- Presses and heavy machinery safety doors.
- Automated production lines.
- Packaging and processing equipment.
- Machines with run-down or residual motion hazards.
