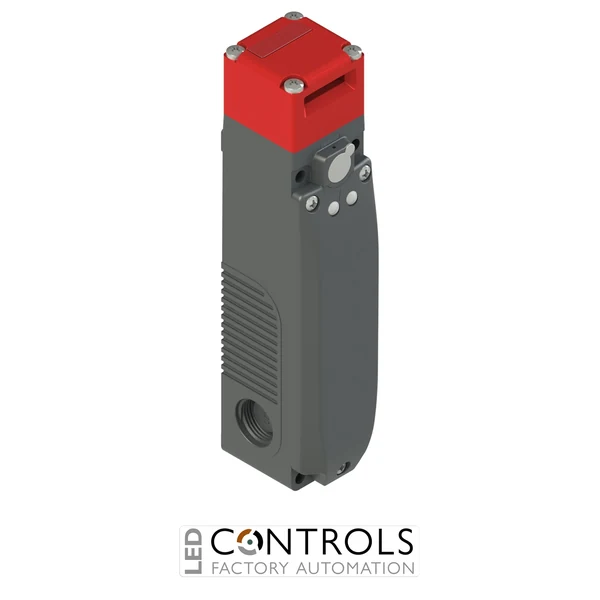

Why Choose the Pizzato FY60AD1E0A Safety Interlock Switch?
The Pizzato FY60AD1E0A is a high-performance industrial safety interlock switch with electromagnetic locking and separate actuator, designed for machine guarding, access control, and safety circuit integration in automated production environments. As part of the advanced Pizzato FY60 safety switch series, it is engineered to deliver reliable operator protection and secure machine guarding in demanding industrial applications.
This model is designed to ensure that protective guards remain locked while hazardous machine conditions are present. It is widely used in automated systems where controlled access is required, preventing safety doors or gates from being opened until a safe state has been reached.
The FY60AD1E0A features a robust technopolymer housing, precision switching contacts, and a rotating head for flexible installation. It operates using an energised solenoid release principle, providing controlled unlocking logic in safety systems where energisation is required for release.
Key Advantages
- High-reliability safety interlock switch with locking function.
- Designed for industrial machine guarding and automation safety systems.
- Energised solenoid release for controlled access logic.
- Rotating head for flexible mounting orientation.
- Compatible with safety PLCs and industrial control systems.
- IP67 / IP69K protection for harsh environments.
Key Features
- Pizzato FY60 safety switch series.
- Model: FY60AD1E0A.
- Electromagnetic locking safety interlock switch.
- Separate actuator (guard door system).
- Contact configuration: 1NO + 1NC (actuator) + 1NO + 1NC (solenoid). {index=1}
- Working principle: E type (energised solenoid release).
- 24 V AC/DC solenoid control voltage.
- Rotating head design for flexible installation.
- Three M20 x 1.5 cable entries.
- Integrated LED status indication (solenoid powered).
Safety interlock switches like the Pizzato FY60AD1E0A are essential for preventing unsafe machine access during operation. The energised release principle ensures that unlocking is only possible when the control system actively energises the solenoid, enabling controlled and safe access management.
This improves workplace safety, supports compliance with international machinery safety standards such as EN ISO 14119, and enables seamless integration with safety PLC systems and industrial automation networks. The FY60 series is widely used in robotics, packaging, and automated production lines.
Typical Applications
- Machine safety guarding and interlocked access doors.
- Industrial automation and manufacturing systems.
- Robotics safety cells and automated production lines.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- High-risk industrial safety circuits.
