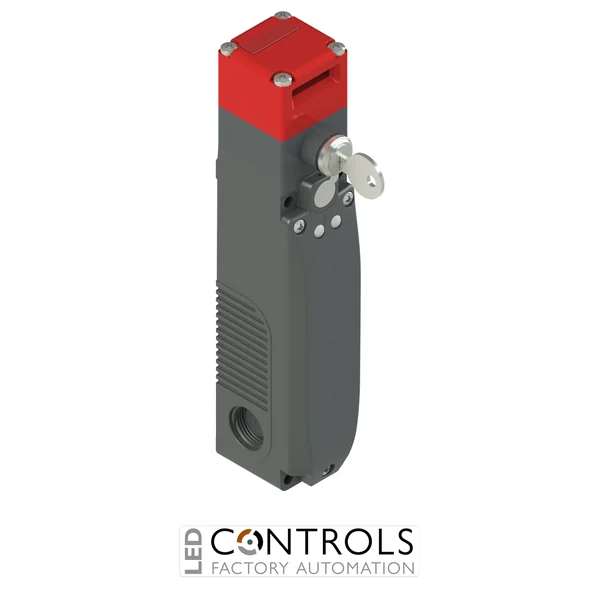

Why Choose the Pizzato FY60AD5D0A Safety Interlock Switch?
The Pizzato FY60AD5D0A is a high-reliability industrial safety interlock switch with electromagnetic locking and separate actuator, designed for machine guarding, access control, and safety circuit integration in automated production environments. As part of the advanced Pizzato FY60 safety switch series, it delivers secure operator protection and dependable control of hazardous machine access points.
This model is widely used in industrial automation systems where protective guards must remain locked during dangerous machine operation. It ensures that safety doors or gates cannot be opened until a safe condition is achieved, supporting compliance with machinery safety standards such as EN ISO 14119 and modern OEM safety architectures.
The FY60AD5D0A features a reinforced technopolymer housing, precision switching contacts, and a rotating head for flexible mounting. It operates using an energised solenoid release (E working principle), meaning the guard unlocks only when the solenoid is powered, enabling controlled and intentional access in safety-critical applications.
Key Advantages
- High-reliability safety interlock switch with locking function.
- Designed for industrial machine guarding and automation safety systems.
- Energised solenoid release for controlled access logic.
- Robust technopolymer housing for demanding industrial environments.
- Rotating head for flexible installation orientation.
- Compatible with safety PLC systems and industrial control networks.
Key Features
- Pizzato FY60 safety switch series.
- Model: FY60AD5D0A.
- Electromagnetic locking safety interlock switch.
- Separate actuator (guard door system).
- Contact configuration: 1NO + 1NC (actuator) + 1NO + 1NC (solenoid).
- Working principle: E type (energised solenoid release). {index=1}
- Rated control voltage: 24 V AC/DC.
- Rotating head design for flexible mounting.
- Three M20 x 1.5 cable entries.
- LED status indication for operational feedback.
Safety interlock switches like the Pizzato FY60AD5D0A are essential for preventing unsafe machine access during operation. The energised locking principle ensures that unlocking is only possible when the control system actively powers the solenoid, enabling precise and controlled access in automated machinery systems.
This improves workplace safety, supports compliance with international machinery safety standards such as EN ISO 14119, and enables seamless integration with safety PLC systems and industrial automation networks. The FY60 series is widely used in robotics, packaging, and automated manufacturing systems.
Typical Applications
- Machine safety guarding and interlocked access doors.
- Industrial automation and manufacturing systems.
- Robotics safety cells and automated production lines.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- High-risk industrial safety circuits.
