Why Choose the Pizzato FY60AD6D0A-N07 Safety Switch with Solenoid Lock?

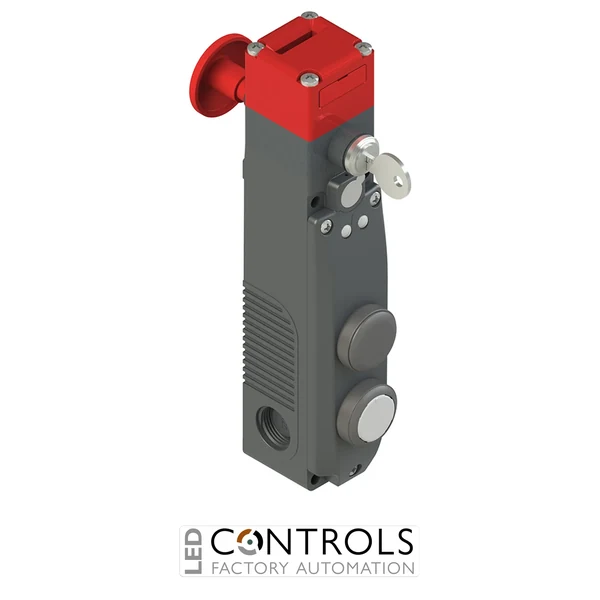

The Pizzato FY60AD6D0A-N07 is a high-integrity safety switch with separate actuator and solenoid locking, designed for advanced guard monitoring and controlled access in industrial automation systems. As part of the proven Pizzato FY series, it delivers reliable safety performance in demanding machine environments.
This version uses a de-energised solenoid locking system, meaning the actuator remains locked when power is removed. This fail-safe design ensures hazardous areas remain inaccessible even during power failure, helping maintain compliance with machine safety standards and protecting operators.
The FY60AD6D0A-N07 is supplied without actuator, allowing flexible selection of compatible actuators depending on the application. It also features a rotating head with auxiliary key release and escape button, providing additional safety and emergency access functionality.
Key Advantages
- Fail-safe solenoid locking (power-off locking) for enhanced safety.
- Integrated escape release button for emergency exit from hazardous areas.
- Auxiliary key release for authorised maintenance access.
- Flexible actuator selection for customised installations.
- High actuator holding force for secure guard locking.
- Reliable performance in demanding industrial environments.
Key Features
- Pizzato FY series safety switch with separate actuator.
- De-energised solenoid locking (power to release).
- Contact configuration: 1 NO + 1 NC (actuator) and 1 NO + 1 NC (solenoid).
- Rotating head with auxiliary key release and escape button.
- Two green LED indicators for solenoid status.
- Three M20 cable entries for industrial wiring.
- Positive opening contacts for high safety reliability.
Enhanced Safety with Escape and Key Release Functions
The FY60AD6D0A-N07 is designed for applications where operators may need to exit hazardous areas safely. The integrated escape release button allows immediate unlocking from inside the guarded area, while the auxiliary key release enables authorised personnel to override the lock for maintenance purposes.
This makes the device particularly suitable for machinery where hazards remain after shutdown, such as systems with inertia, high temperatures or stored energy.
Typical Applications
- Safety doors on automated machinery and robotic cells.
- Enclosed production lines requiring emergency escape.
- Packaging and processing equipment.
- Material handling and conveyor systems.
- Industrial automation systems with controlled access.
- Applications requiring authorised override and fail-safe locking.
