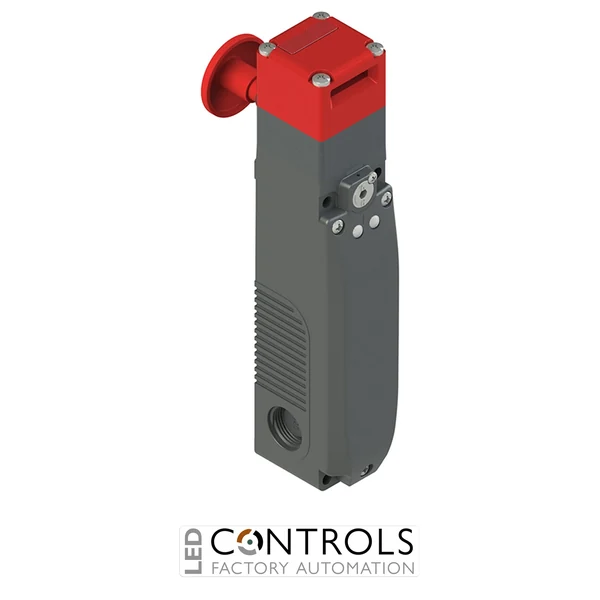

Why Choose the Pizzato FY60AD7D0A Safety Switch with Solenoid Lock?
The Pizzato FY60AD7D0A is a high-performance safety switch with separate actuator and solenoid locking, designed for advanced machine safety and controlled access in industrial automation environments. As part of the proven Pizzato FY series, it ensures that safety guards remain securely locked until safe operating conditions are achieved.
This model features a de-energised solenoid locking system, meaning the actuator remains locked when power is removed, providing fail-safe protection in critical safety applications. It also includes an integrated escape release pushbutton, allowing safe exit from hazardous areas when required.
Constructed with a durable technopolymer housing and rotating metal head, the FY60AD7D0A delivers excellent mechanical strength and reliability in demanding industrial environments, making it ideal for machine builders and automation engineers.
Key Advantages
- Fail-safe solenoid locking system (power-off locking).
- Integrated escape release pushbutton for emergency exit.
- Reliable safety interlocking and guard monitoring.
- High actuator holding force for secure guard locking.
- Durable construction for long service life.
- Flexible installation with rotating head configuration.
Key Features
- Pizzato FY series safety switch with separate actuator.
- De-energised solenoid locking (power to release).
- Contact configuration: 1 NO + 1 NC (actuator) and 1 NO + 1 NC (solenoid).
- Escape release button for operator safety.
- Rotating head for versatile mounting positions.
- Three M20 cable entries for industrial wiring.
- 2 green LED indicators showing solenoid status.
Fail-Safe Guard Locking with Emergency Escape
The FY60AD7D0A is designed to prevent access to hazardous machine areas while equipment is operating. Its power-to-release locking system ensures that guards remain locked even in the event of power failure, enhancing safety in critical applications.
The integrated escape release function provides an additional layer of protection, allowing operators to exit enclosed hazardous zones safely when necessary, making it particularly suitable for robotics cells and automated machinery.
Typical Applications
- Safety doors with escape release requirements.
- Robotic cells and automated production lines.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- Hazardous zones requiring fail-safe locking.
- Applications requiring emergency exit functionality.
