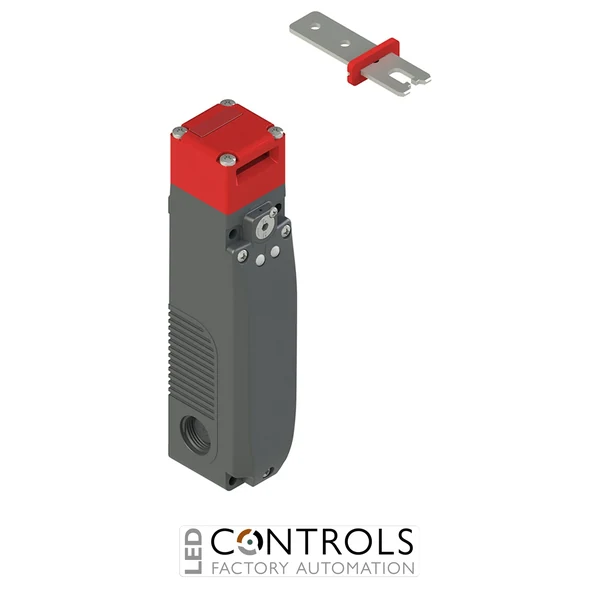

FY 60BD1D0A-F20 Pizzato FY series safety switch with separate actuator with lock

FY 60BD1D0A-F20 Pizzato FY series safety switch with separate actuator with lock

Pizzato FY60BD1D0A-F20 safety switch with separate actuator, solenoid lock and F20 actuator for industrial machine safety and controlled access systems.

SKU: FY60BD1D0A-F20Alt SKU: FY60BD1D0AF20MPN: FY 60BD1D0A-F20
Price
List Price £123.21 ex VAT
Your Price (ex VAT)
£123.21
Manufacturer Lead Time Standard Manufacturer Lead Time 4-5 Weeks, Call For Express Delivery Options
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £123.21
Trade pricing is personalised to your account

Manufacturer Lead Time

£123.21

Why Choose the Pizzato FY60BD1D0A-F20 Safety Switch with Solenoid Lock?

The Pizzato FY60BD1D0A-F20 is a compact and highly reliable safety switch with separate actuator and solenoid locking, designed to ensure safe access control and guard monitoring in industrial automation systems. As part of the trusted Pizzato FY series, it provides dependable safety performance for machinery requiring controlled access and compliance with modern safety standards.

This model operates using a de-energised solenoid locking principle, meaning the actuator remains locked when power is removed. This fail-safe design ensures that hazardous areas remain inaccessible in the event of power loss, enhancing operator protection and system reliability.

Supplied with an F20 straight actuator, the FY60BD1D0A-F20 enables straightforward installation and consistent engagement with the locking mechanism, making it ideal for machine builders and industrial engineers.

Key Advantages

  • Fail-safe solenoid locking (power-off locking) for maximum safety.
  • Reliable safety interlocking and guard monitoring.
  • Supplied with F20 actuator for quick installation.
  • High actuator holding force for secure guard locking.
  • Durable construction for long service life.
  • Flexible mounting with rotating head configuration.

Key Features

  • Pizzato FY series safety switch with separate actuator.
  • De-energised solenoid locking (power to release).
  • Contact configuration: 1 NO + 1 NC (actuator) and 2 NC (solenoid).
  • Rotating head for versatile installation orientation.
  • Three M20 conduit entries for industrial wiring.
  • 2 green LED indicators showing solenoid status.
  • Positive opening contacts for enhanced safety reliability.

Fail-Safe Guard Locking for Industrial Machinery

The FY60BD1D0A-F20 is designed to prevent access to hazardous machine areas while equipment is operating. Its power-to-release locking system ensures that guards remain locked even in the event of power failure, significantly improving safety in industrial environments.

Safety switches in the FY series are widely used in industrial automation systems due to their reliability, robust construction and compatibility with PLC and safety relay systems, ensuring dependable machine protection.

Typical Applications

  • Safety doors and guard locking systems.
  • Industrial automation and production lines.
  • Packaging and processing machinery.
  • Material handling and conveyor systems.
  • Robotics and hazardous area protection.
  • Applications requiring fail-safe access control.

Technical Specifications

Voltage 24 V
IP Rating IP67
Series FY Series
Product type Safety switch with solenoid lock
Operating principle Separate actuator with de-energised locking
Contact configuration 1 NO + 1 NC (actuator) + 2 NC (solenoid)
Supply voltage 24 V AC/DC
Protection rating IP67 / IP69K
Housing material Technopolymer with metal head
Head type Rotating head
Cable entry 3 × M20 threaded entries
Actuator F20 straight actuator included
Mounting type Panel / machine mounting
Operating temperature Approx. -25 °C to +60 °C
Holding force Up to approx. 2800 N (series typical)
HS Code 85369095
Contacts 1NO + 3NC
Safety Switch Type Guard locking (solenoid)
Guard Locking Power to release (spring lock)

Frequently Asked Questions

What is the Pizzato FY60BD1D0A-F20 used for?

This safety switch is used to monitor and lock safety guards, preventing access to hazardous machine areas during operation.

What does the F20 actuator mean?

The F20 is a straight actuator supplied with the switch, ensuring reliable engagement with the locking mechanism.

How does the locking mechanism work?

It uses a de-energised solenoid, meaning the actuator remains locked when power is removed for fail-safe operation.

What voltage does this switch require?

The FY60BD1D0A-F20 operates on a 24 V AC/DC supply.

Where is this switch typically installed?

It is installed on safety doors and guards in industrial machinery requiring controlled and secure access.

Trusted by Industrial Safety Engineers

Pizzato FY series safety switches are widely trusted for delivering reliable guard locking, fail-safe protection and long-term durability in industrial automation systems.
