Why Choose the Pizzato FY60DD1D0A-N04 Safety Switch with Solenoid Lock?

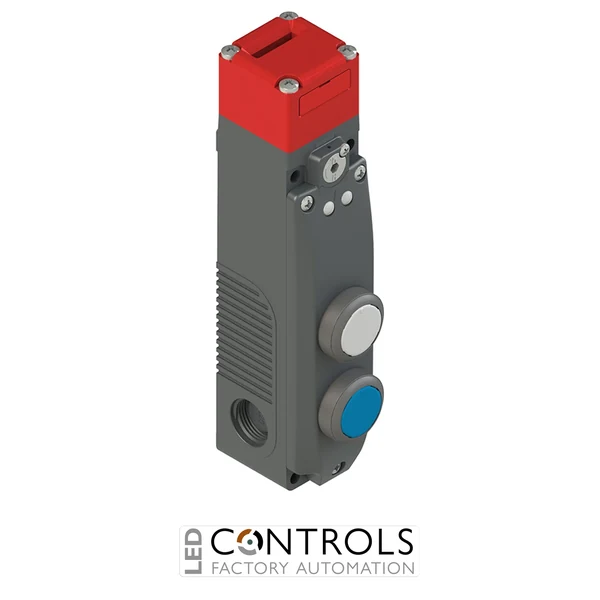

The Pizzato FY60DD1D0A-N04 is a heavy-duty safety switch with separate actuator and solenoid locking, designed to provide reliable guard monitoring and controlled access in industrial automation systems. As part of the robust Pizzato FY series, it ensures machinery guards remain securely locked until safe operating conditions are achieved.
This model features a de-energised solenoid locking system, meaning the actuator remains locked when power is removed. This fail-safe operation prevents access to hazardous areas during power failure, significantly enhancing operator safety and ensuring compliance with machine safety standards.
The FY60DD1D0A-N04 is supplied without actuator, allowing flexible configuration depending on the application. It also incorporates a rotating head with auxiliary release and escape pushbutton, providing enhanced safety for both maintenance personnel and machine operators.
Key Advantages
- Fail-safe solenoid locking (power-off locking) for maximum safety.
- Escape release pushbutton for emergency exit from hazardous areas.
- Auxiliary release for authorised maintenance access.
- Reliable safety interlocking and guard monitoring.
- High actuator holding force for secure guard locking.
- Durable industrial construction for long service life.
Key Features
- Pizzato FY series safety switch with separate actuator.
- De-energised solenoid locking (power to release).
- Contact configuration: 2 NC (actuator) and 1 NO + 1 NC (solenoid).
- Rotating head with escape release and auxiliary unlocking device.
- 2 green LED indicators for solenoid status.
- Three M20 cable entries for industrial wiring.
- High-reliability contacts with positive opening operation.
Enhanced Safety with Escape and Auxiliary Release
The FY60DD1D0A-N04 is designed to prevent access to hazardous machine areas while equipment is operating. Its power-to-release locking system ensures guards remain locked even during power loss, maintaining safe conditions at all times.
The integrated escape release pushbutton allows operators to exit hazardous areas from inside the enclosure, while the auxiliary release provides controlled override access for maintenance personnel. This makes it ideal for high-risk industrial applications where residual hazards may persist after shutdown.
Typical Applications
- Safety doors and guard locking systems.
- Robotic cells and enclosed machinery.
- Industrial automation and production lines.
- Packaging and processing equipment.
- Material handling and conveyor systems.
- Applications requiring emergency escape and authorised override.
