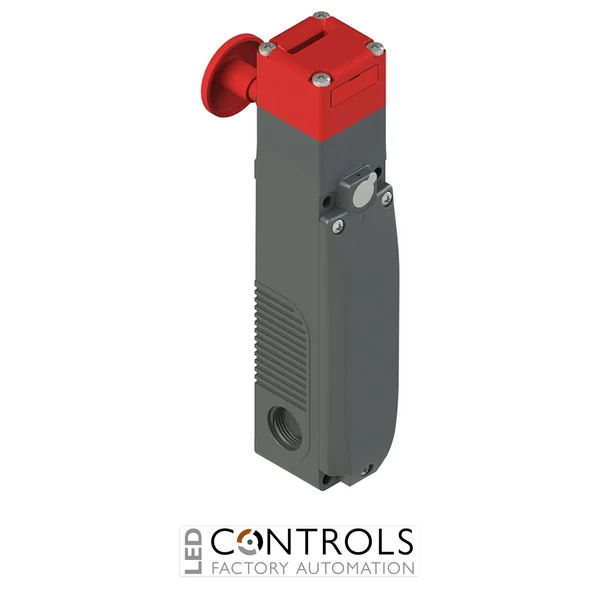

Why Choose the Pizzato FY60DD7E0Z-LP40 Safety Switch with Solenoid Lock?
The Pizzato FY60DD7E0Z-LP40 is a high-performance safety switch with separate actuator and solenoid locking, designed for advanced guard monitoring and controlled access in industrial automation systems. As part of the robust Pizzato FY series, it ensures machinery guards remain securely locked until safe operating conditions are met.
This model operates using an energised solenoid locking principle, meaning the actuator is locked when power is applied and released when power is removed. This makes it ideal for applications requiring automatic unlocking during power loss or emergency situations.
The FY60DD7E0Z-LP40 is supplied without actuator and features a modular LP40 configuration, allowing integration of signalling devices or control elements. Its rugged construction and flexible configuration make it suitable for demanding industrial environments.
Key Advantages
- Power-to-lock solenoid system for controlled machine access.
- Automatic unlocking on power loss for enhanced safety.
- Integrated escape release and auxiliary key release for emergency and maintenance access.
- Flexible configuration with LP40 modular interface.
- High actuator holding force for secure guard locking.
- Durable design for long-term industrial reliability.
Key Features
- Pizzato FY series safety switch with separate actuator.
- Energised solenoid locking (power to lock).
- D7E operating principle with escape and auxiliary key release.
- Contact configuration: 2 NC (actuator) + 1 NO + 1 NC (solenoid).
- Rotating head for flexible installation orientation.
- LP40 modular interface for additional signalling or control devices.
- Three M20 cable entries for industrial wiring.
- No LED version for simplified applications.
Advanced Safety with Escape and Modular Control
The FY60DD7E0Z-LP40 is designed for applications where both safety and accessibility are critical. The escape release button allows operators to exit hazardous areas safely, while the auxiliary key release enables authorised maintenance access when required.
The LP40 configuration allows integration of signalling devices such as indicator lights or control elements directly onto the switch, reducing panel complexity and improving visibility of machine status.
Typical Applications
- Safety doors on automated machinery and robotic cells.
- Enclosed production systems requiring emergency escape.
- Packaging and processing equipment.
- Material handling and conveyor systems.
- Industrial automation systems with integrated control devices.
- Applications requiring controlled unlocking on power loss.
