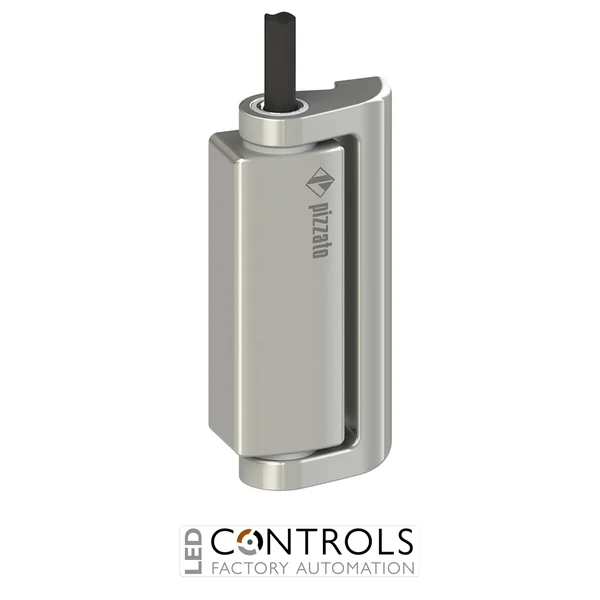

Why Choose the Pizzato HPAA050C-10AN Safety Hinge Switch?
The Pizzato HPAA050C-10AN is a durable and highly reliable safety hinge switch designed for monitoring hinged safety guards and access doors in industrial machinery. As part of the robust Pizzato HP Series, it integrates the switching function directly into the hinge, eliminating the need for separate actuators and reducing installation complexity.
Manufactured with a rugged metal housing and engineered for long-term reliability, this hinge switch provides consistent performance even in harsh industrial environments. It ensures that machines operate only when guards are safely closed, supporting compliance with modern machinery safety standards.
Featuring 1 NO + 1 NC snap-action contacts, a 10 metre oil-resistant cable, and a 0° activation angle, the HPAA050C-10AN is designed for precise, immediate switching and flexible installation in safety-critical applications.
Key Advantages
- Integrated safety hinge design removes need for external actuators.
- Snap-action switching for fast and reliable response.
- 1 NO + 1 NC contacts suitable for safety circuit integration.
- 10 m pre-wired cable simplifies installation and reduces wiring time.
- Metal housing construction ensures durability in industrial environments.
- Oil-resistant cable suitable for demanding applications.
Key Features
- Pizzato HP Series safety hinge switch.
- Contact configuration: 1 NO + 1 NC.
- Switching type: Snap-action (quick-break).
- Activation angle: 0° (immediate switching).
- Rated voltage: up to 250 V AC.
- Cable length: 10 m fixed cable.
- Cable type: PVC, oil-resistant.
- Housing material: Metal.
- Output direction: Top cable exit.
- Movable part: Right-hand configuration.
Immediate Safety Response for Hinged Guards
The HPAA050C-10AN provides instant switching with a 0° activation angle, meaning the safety circuit responds immediately when the guard begins to open. This ensures rapid interruption of hazardous machine movements, improving operator safety.
By integrating the safety function directly into the hinge, the device eliminates alignment issues and tampering risks associated with conventional actuator-based switches, making it a reliable solution for modern industrial safety systems.
Typical Applications
- Safety monitoring of hinged machine guards and access doors.
- Packaging and automated production machinery.
- Industrial conveyors and material handling systems.
- Machine tools and processing equipment.
- Robotics and automated assembly systems.
- OEM machinery and industrial automation panels.
