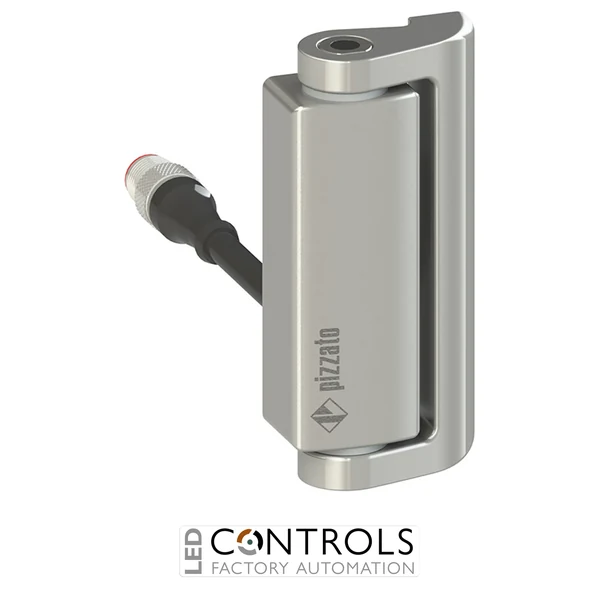

Why Choose the Pizzato HPAA050D-0.2PM Safety Hinge Switch?
The Pizzato HPAA050D-0.2PM is a compact and highly reliable safety hinge switch designed for monitoring hinged safety guards and access doors in industrial environments. As part of the proven Pizzato HP series, it integrates the switching mechanism directly into the hinge, eliminating the need for separate actuators and ensuring precise, repeatable operation.
Built with a robust metal housing, this hinge switch is engineered for durability and long service life in demanding industrial applications. Its integrated construction simplifies installation while removing alignment issues typically associated with conventional safety switches.
This model features a 2 NC contact configuration with snap action switching, providing fast and reliable performance for safety circuits. The 0.2 metre cable with connector, IP67 protection rating, and 0° activation angle make it ideal for compact installations and harsh industrial environments requiring dependable guard monitoring.
Key Advantages
- Integrated safety hinge switch design eliminates actuator alignment issues.
- 2 NC contacts for safety-focused circuit design.
- Snap action switching ensures rapid and precise signal response.
- Short 0.2 m cable with connector for compact installations.
- IP67 protection rating suitable for harsh environments.
- Durable metal housing for long operational life.
Key Features
- Pizzato HP series safety hinge switch.
- 2 normally closed (NC) contacts.
- Snap action switching mechanism.
- Rated up to 250 V AC.
- 0.2 metre cable with connector for quick connection.
- Metal housing construction.
- Right-hand movable hinge configuration.
- Rear cable outlet for flexible routing.
- Silver contacts for reliable conductivity.
- 0° activation angle for precise detection.
Integrated Safety for Machine Guarding
Safety hinge switches such as the HPAA050D-0.2PM are mounted directly onto guard hinges, enabling accurate detection of door position. This eliminates misalignment risks and significantly improves reliability compared to actuator-based safety switches.
The Pizzato HP series is widely used in industrial automation systems where dependable guard monitoring is essential. Its snap action switching ensures rapid response, making it suitable for high-cycle machinery and demanding environments.
Typical Applications
- Machine guard doors and protective enclosures.
- Industrial automation and production lines.
- Packaging and processing machinery.
- Robotics and automated systems.
- Safety circuits requiring dual-channel NC monitoring.
- Compact installations with connector-based wiring.
