Why Choose the Pizzato HPAA052D-0.1PM Safety Hinge Switch?

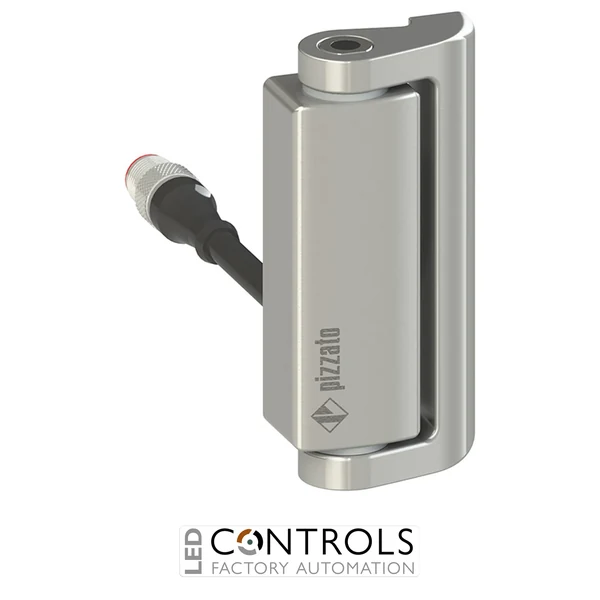

The Pizzato HPAA052D-0.1PM is a robust safety hinge switch from the HP Series, engineered for reliable monitoring of hinged machine guards and safety access doors. It combines hinge functionality with integrated safety contacts, offering a compact and tamper-resistant solution for industrial automation and safety systems.
Constructed with a durable metal housing, this switch is designed for long service life in demanding environments. It features a 0.1 m PVC cable with M12 connector, allowing fast installation and flexible wiring in control systems.
With 2 normally closed (NC) slow-action contacts with positive opening, the HPAA052D-0.1PM ensures dependable interruption of safety circuits when guards are opened. Its design supports stable switching behaviour and high safety integrity for critical machine applications.
Key Advantages
- Integrated safety hinge switch for machine guard monitoring.
- 2 NC positive opening contacts for high safety reliability.
- Slow-action switching provides controlled and stable operation.
- Metal housing ensures durability in industrial environments.
- Pre-wired 0.1 m cable with M12 connector for quick installation.
- High IP67 / IP69K protection rating for harsh conditions.
Key Features
- Pizzato HP Series safety hinge switch.
- Contact configuration: 2 NC.
- Contact type: Slow action with positive opening.
- Cable: 0.1 m PVC cable with M12 connector.
- Housing: Metal construction.
- Movable part: approx. 100 × 50 mm.
- Output orientation: Rear cable exit.
- Protection rating: IP67 / IP69K.
Reliable Guard Monitoring for Industrial Safety
Safety hinge switches such as the HPAA052D-0.1PM are designed to detect when a machine guard is opened and immediately interrupt the control circuit. This prevents hazardous machine operation and ensures operator safety during maintenance or access.
The slow-action contact mechanism provides controlled switching behaviour, making it ideal for applications where stable and consistent electrical response is required.
Typical Applications
- Machine safety guarding and access doors.
- Industrial automation and robotics systems.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- OEM machinery and safety interlocking systems.
- Applications requiring stable switching performance.
