Why Choose the Pizzato HPAA052F-KSMH75 Safety Hinge Switch?

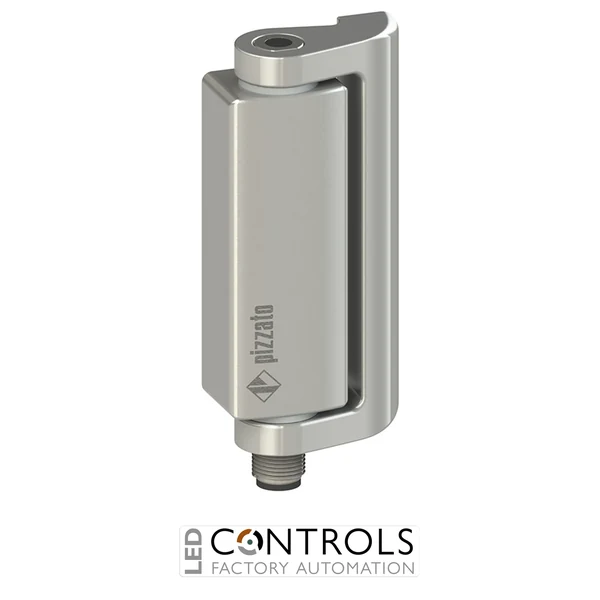

The Pizzato HPAA052F-KSMH75 is a heavy-duty safety hinge switch from the HP Series, designed for reliable monitoring of hinged machine guards and safety access doors. It integrates hinge functionality with safety switching, providing a compact, tamper-resistant solution for industrial automation systems.
Built with a robust metal housing, this switch is engineered for durability in demanding environments. The integrated M12 connector enables fast and secure wiring, reducing installation time and ensuring dependable electrical connections.
Featuring 1 NO + 2 NC slow-action contacts with positive opening and a defined 75° activation angle, the HPAA052F-KSMH75 ensures precise and stable switching performance, making it ideal for safety circuits requiring controlled operation.
Key Advantages
- Integrated safety hinge switch for machine guard monitoring.
- 1 NO + 2 NC contact configuration for flexible safety circuits.
- Positive opening contacts ensure reliable disconnection.
- 75° activation angle allows flexible installation.
- Metal housing for durability in harsh industrial environments.
- M12 connector for quick and secure installation.
Key Features
- Pizzato HP Series safety hinge switch.
- Contact configuration: 1 NO + 2 NC.
- Contact type: Slow action with positive opening.
- Activation angle: approx. 75°.
- Connector: Integrated M12.
- Housing: Metal construction.
- Movable part: approx. 100 × 50 mm.
- Silver contacts for reliable electrical performance.
Reliable Guard Monitoring for Industrial Safety
Safety hinge switches such as the HPAA052F-KSMH75 are designed to detect when a machine guard is opened and immediately interrupt the safety circuit. This prevents hazardous machine operation and ensures operator protection during maintenance or access procedures.
The slow-action contact mechanism provides controlled switching behaviour, making it suitable for applications where stable electrical response is required rather than rapid snap-action switching.
Typical Applications
- Machine safety guarding and access doors.
- Industrial automation systems.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- OEM machinery and safety interlocking systems.
- Applications requiring controlled switching performance.
