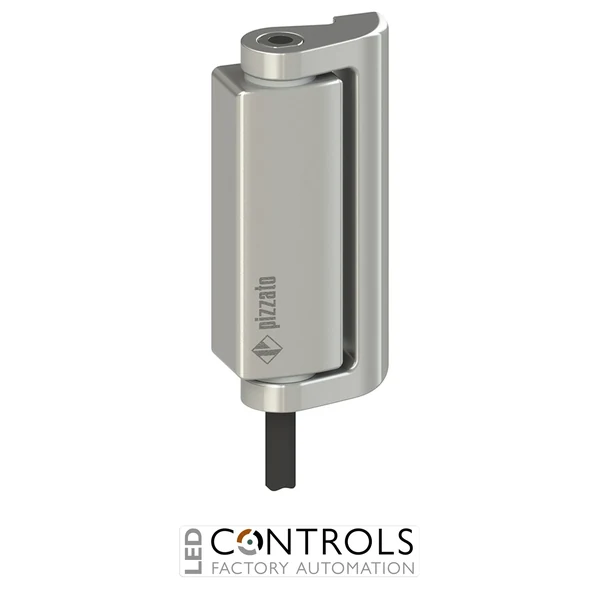

Why Choose the Pizzato HPAA053F-10SH Safety Hinge Switch?
The Pizzato HPAA053F-10SH is a high-performance safety hinge switch designed for monitoring hinged guards and access doors in industrial machinery. As part of the advanced Pizzato HP series, it integrates directly into the hinge, delivering a discreet, tamper-resistant safety solution for modern automation systems.
Built with a rugged metal housing, this switch is engineered for durability in harsh industrial environments. Its integrated hinge design improves safety integrity by reducing the risk of bypassing while simplifying installation and eliminating exposed components.
Featuring a 1NO + 2NC slow-action contact configuration, 10 metre PUR halogen-free cable, and 250 V AC rating, the HPAA053F-10SH is ideal for industrial safety circuits requiring extended cable reach and reliable guard monitoring.
Key Advantages
- Integrated hinge safety switch design for concealed and tamper-resistant installation.
- 1NO + 2NC contacts provide flexible and reliable safety monitoring.
- Durable metal housing ensures long service life in industrial environments.
- 10 metre PUR cable supports extended installations with enhanced durability.
- Positive opening contacts improve safety circuit reliability.
- Supports compliance with machinery safety standards and safe system design.
Key Features
- Pizzato HP series safety hinge switch.
- 1 normally open (NO) + 2 normally closed (NC) contacts, slow action.
- Rated voltage up to 250 V AC.
- 10 m PUR halogen-free cable for industrial durability.
- Bottom cable output configuration.
- Movable hinge part approx. 100 × 50 mm.
- Right-hand mounting orientation.
- Activation angle approx. 0°.
- Silver contacts for reliable switching performance.
Integrated Safety for Hinged Guards
Safety hinge switches such as the HPAA053F-10SH ensure that machine guards remain closed during operation. When the guard is opened, the switch interrupts the safety circuit, immediately stopping hazardous movement and protecting operators.
The hinge-integrated design significantly reduces the risk of tampering or bypassing, making it a preferred solution for high-integrity safety systems in industrial automation and machine building.
Typical Applications
- Machine guarding and access door monitoring.
- Industrial automation systems and production lines.
- Packaging, processing and assembly machinery.
- Robotic cells and automated equipment.
- OEM machine safety integration.
- Large-scale machinery requiring extended cable runs.
