Why Choose the Pizzato HPAA053F-KAMH30 Safety Hinge Switch?

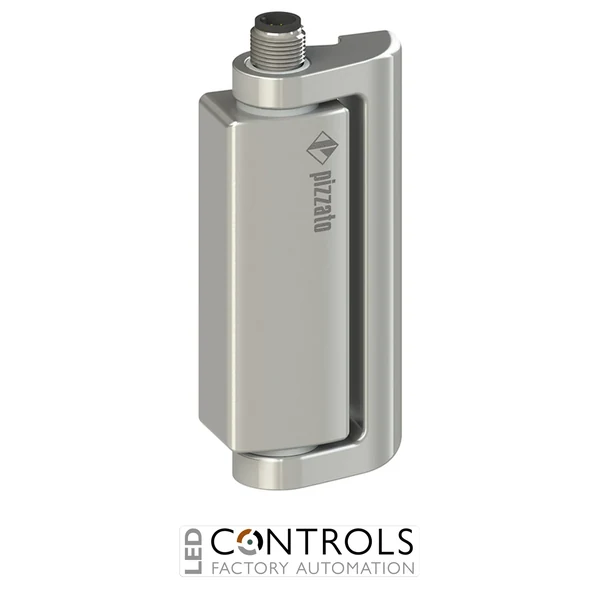

The Pizzato HPAA053F-KAMH30 is a heavy-duty safety hinge switch designed for monitoring hinged safety guards and access doors in industrial machinery. As part of the proven Pizzato HP Series, it integrates the switching mechanism directly into the hinge, providing a compact, tamper-resistant safety solution without the need for external actuators.
Engineered with a rugged metal housing and high-quality switching components, this device delivers reliable performance even in harsh industrial environments. It ensures that machinery only operates when guards are correctly closed, helping maintain operator safety and compliance with machinery safety standards.
With a 30° activation angle, 1 NO + 2 NC slow-action contacts, and an integrated M12 connector, the HPAA053F-KAMH30 offers precise detection, simplified wiring, and consistent safety performance across a wide range of automation and machine-building applications.
Key Advantages
- Integrated safety hinge design eliminates separate actuator alignment issues.
- 30° switching angle for precise guard position detection.
- 1 NO + 2 NC contacts for reliable safety circuit integration.
- Metal housing construction ensures durability in industrial environments.
- M12 connector enables fast, secure and standardised wiring.
- Positive opening contacts for enhanced safety performance.
Key Features
- Pizzato HP Series safety hinge switch.
- Contact configuration: 1 NO + 2 NC.
- Switching type: Slow action, make-before-break.
- Activation angle: 30°.
- Rated voltage: up to 250 V AC.
- Connector type: Integrated M12, 8-pole.
- Housing material: Metal body.
- Protection rating: up to IP67 / IP69K.
- Movable part: Right-hand configuration.
- Output direction: Top cable/connector exit.
Precision Safety Monitoring for Hinged Guards
The HPAA053F-KAMH30 is designed to provide reliable detection of guard position by integrating the switching function directly into the hinge. This eliminates mechanical misalignment issues and improves system reliability compared to traditional actuator-based safety switches.
Its positive opening contacts and robust construction ensure that safety circuits respond immediately when a guard is opened, helping protect personnel and equipment while maintaining high system uptime in industrial automation environments.
Typical Applications
- Safety monitoring of hinged machine guards and access doors.
- Packaging and automated production machinery.
- Industrial conveyors and material handling systems.
- Robotics and automated assembly lines.
- Machine tools and process equipment.
- OEM machinery and custom automation systems.
