Why Choose the Pizzato HPAA053M-0.2PM Safety Hinge Switch?

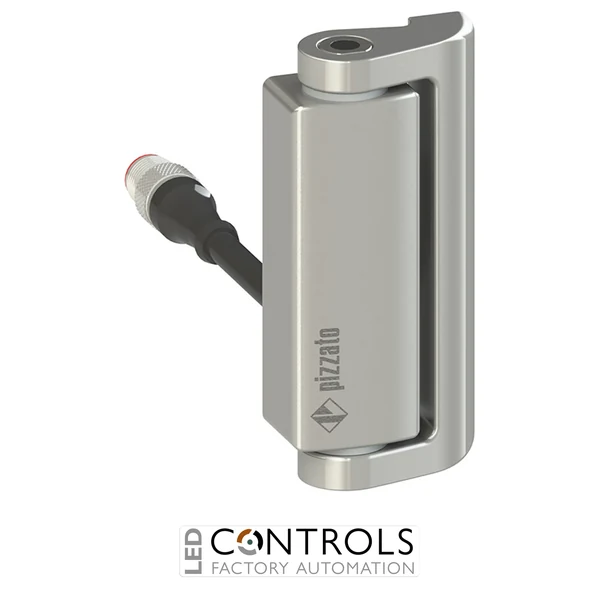

The Pizzato HPAA053M-0.2PM is a heavy-duty safety hinge switch from the HP Series, designed for reliable monitoring of hinged machine guards and safety access doors. It integrates hinge mechanics with advanced safety switching, providing a compact, tamper-resistant solution for industrial automation and machine safety systems.
Constructed with a robust metal housing, this switch is engineered for long-term durability in demanding industrial environments. It features a 0.2 metre PVC cable with M12 connector, allowing quick installation and secure integration into control systems.
This model incorporates a 2 NO + 2 NC slow-action contact configuration with overlapping (make-before-break) operation and positive opening, delivering enhanced redundancy and continuous signal transition. It is ideal for high-integrity safety circuits and complex automation systems.
Key Advantages
- Integrated safety hinge switch for monitoring hinged guards.
- 2 NO + 2 NC contacts for advanced safety circuit design and redundancy.
- Positive opening contacts ensure safe disconnection.
- Make-before-break operation maintains signal continuity.
- 0.2 m cable with M12 connector for fast installation.
- Metal housing ensures durability in harsh industrial environments.
Key Features
- Pizzato HP Series safety hinge switch.
- Contact configuration: 2 NO + 2 NC.
- Contact type: Slow action, overlapping (make-before-break), positive opening.
- Cable: 0.2 m PVC cable with M12 connector.
- Connector: M12, 5-pole.
- Housing: Metal construction.
- Movable part: approx. 100 × 50 mm.
- Output orientation: Rear cable exit.
Enhanced Safety and Signal Continuity
Safety hinge switches such as the HPAA053M-0.2PM are designed to detect when a machine guard is opened and immediately interrupt the safety circuit. This prevents hazardous machine operation and protects operators during maintenance or access procedures.
The make-before-break contact design ensures overlapping switching, maintaining signal continuity during transitions. Combined with redundant contacts, this makes it ideal for complex automation systems requiring high safety integrity.
Typical Applications
- Machine safety guarding and access doors.
- Industrial automation and robotics systems.
- Packaging and processing machinery.
- Material handling and conveyor systems.
- OEM machinery and safety interlocking systems.
- High-integrity safety circuits requiring redundancy and continuity.
