Why Choose the Pizzato HPAB052C-3AN Safety Hinge Switch?

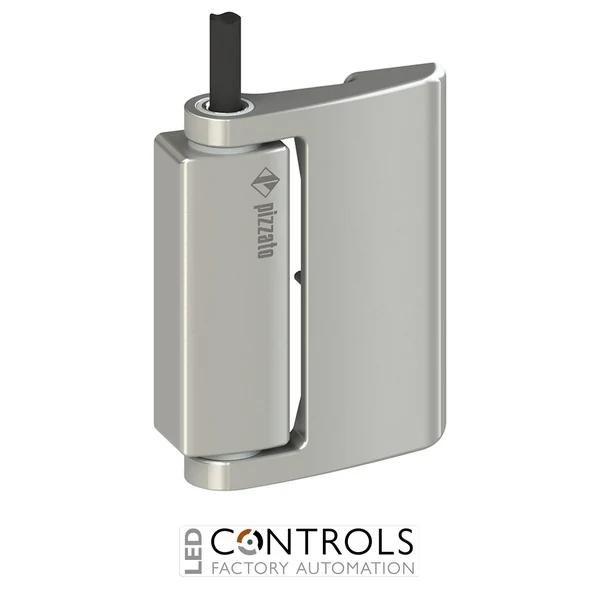

The Pizzato HPAB052C-3AN is a precision-engineered safety hinge switch designed for monitoring hinged safety guards in industrial machinery. As part of the advanced Pizzato HP series, this unit integrates the electrical safety switch directly into the hinge, eliminating the need for separate actuators and ensuring accurate, tamper-resistant operation.
Built with a robust metal housing and engineered for demanding industrial environments, the HPAB052C-3AN delivers reliable performance even under harsh conditions. Its integrated hinge design simplifies installation, reduces alignment issues, and enhances overall system safety.
Featuring a 1NO + 1NC slow-action contact configuration, positive opening operation, and a 3 m integrated cable, this hinge switch ensures dependable monitoring of guard positions. With a 250 V AC rating, 0° activation angle, and high ingress protection, it is ideal for safety-critical applications.
Key Advantages
- Integrated hinge and safety switch design eliminates alignment issues.
- Positive opening contacts for reliable safety circuit interruption.
- 1NO + 1NC configuration suitable for standard safety control systems.
- Durable metal housing for long service life.
- IP67 / IP69K protection for harsh and washdown environments.
- Supports compliance with EN ISO 14119 safety standards.
Key Features
- Pizzato HP series safety hinge switch.
- 1NO + 1NC slow-action contacts with positive opening.
- 3 m integrated oil-resistant PVC cable.
- Top cable output with right-side movable hinge section.
- 0° activation angle for precise switching.
- Silver contacts for reliable conductivity.
- 100 × 75 mm movable part for medium to large guard doors.
- Designed for consistent performance in industrial applications.
Reliable Guard Monitoring for Industrial Safety
The HPAB052C-3AN ensures machinery stops when a safety guard is opened, protecting operators from hazardous motion. Its positive opening contacts provide guaranteed disconnection of control circuits, ensuring compliance with modern safety requirements.
By integrating the switching mechanism directly into the hinge, the HP series eliminates common mechanical alignment issues and reduces the risk of tampering. This results in consistent switching performance and improved reliability across demanding industrial environments.
Typical Applications
- Machine safety guarding and interlocking systems.
- Access doors on industrial machinery and automation systems.
- Packaging and processing equipment.
- Material handling and conveyor systems.
- Industrial enclosures and safety doors.
- OEM machine building and safety retrofits.
