Why Choose the Pizzato HPAB053F-10PN Safety Hinge Switch?

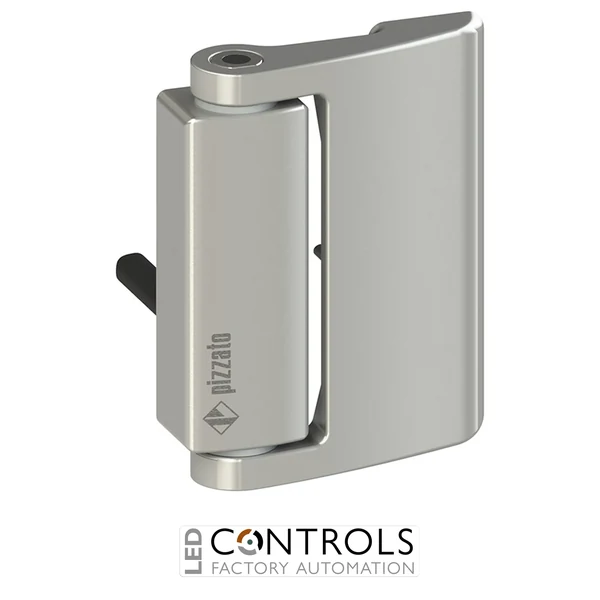

The Pizzato HPAB053F-10PN is a heavy-duty safety hinge switch designed for reliable monitoring of hinged safety guards and access doors in industrial environments. Part of the robust Pizzato HP series, this device integrates the switching mechanism directly into the hinge, eliminating the need for separate actuators and ensuring consistent, accurate operation.
Engineered with a durable metal housing, the HPAB053F-10PN is built to withstand demanding industrial conditions. Its integrated design reduces installation complexity and removes alignment issues commonly associated with traditional safety switches.
This model features a 1 NO + 2 NC contact configuration with slow action, make-before-break switching, ensuring dependable signal switching for safety circuits. With a 10 metre oil-resistant cable and IP67 protection rating, it is ideal for installations exposed to dust, moisture and mechanical stress.
Key Advantages
- Integrated safety hinge switch design eliminates actuator alignment issues.
- 1 NO + 2 NC contacts for enhanced safety circuit flexibility.
- Make-before-break slow action ensures reliable switching performance.
- 10 m oil-resistant cable for long-distance installation.
- IP67 protection rating for harsh industrial environments.
- Robust metal housing for long service life.
Key Features
- Pizzato HP series safety hinge switch.
- 1 NO + 2 NC contact configuration.
- Slow action switching with make-before-break.
- Rated up to 250 V AC.
- 10 metre PVC cable, oil-resistant to IEC 60332-1-2.
- Metal housing construction.
- Right-hand movable hinge configuration.
- Back cable outlet for flexible wiring.
- Silver contacts for reliable conductivity.
- 0° activation angle for precise detection.
Integrated Safety for Machine Guarding
Safety hinge switches such as the HPAB053F-10PN monitor the position of safety doors directly at the hinge point. This eliminates misalignment risks associated with actuator-based systems, improving both reliability and installation efficiency.
The Pizzato HP series is widely used in industrial automation systems where dependable safety monitoring is critical. Its robust construction and reliable switching performance make it suitable for high-cycle machinery and demanding environments.
Typical Applications
- Machine guard doors and protective enclosures.
- Industrial automation and production systems.
- Packaging and processing machinery.
- Robotics and automated equipment.
- Safety circuits requiring door position monitoring.
- Heavy-duty industrial installations.
