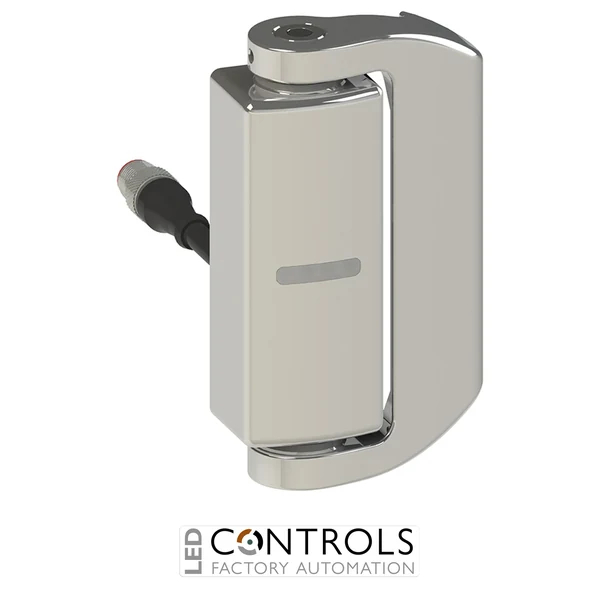

Why Choose the Pizzato HXBEE1-0.2PM Safety Hinge Switch?
The Pizzato HXBEE1-0.2PM is a premium stainless steel safety hinge switch from the advanced HX series, designed for high-integrity monitoring of hinged guards and access doors in demanding industrial environments. Unlike conventional mechanical switches, this model features a fully integrated hinge and electronic safety system, delivering precise, tamper-resistant operation.
Manufactured from AISI 316L stainless steel, the HX series is specifically engineered for environments requiring high resistance to corrosion, washdown, and contamination, making it ideal for food processing, pharmaceutical, and chemical industries.
This version includes an electronic contact block with LED diagnostics, offering 2 PNP safety outputs, 1 signalling output, and 2 safety inputs. The 0.2 metre cable with M12 8-pole connector, IP67 and IP69K protection, and 0° activation angle ensure reliable performance even in extreme operating conditions.
Key Advantages
- Integrated electronic safety hinge switch eliminates actuator alignment issues.
- 2 PNP safety outputs + signalling output for advanced safety system integration.
- IP67 and IP69K protection for washdown and harsh environments.
- AISI 316L stainless steel housing for corrosion resistance.
- 0.2 m cable with M12 connector for fast, secure connection.
- LED diagnostics for easy setup and fault detection.
Key Features
- Pizzato HX series stainless steel safety hinge switch.
- Electronic contact block with LED indicators.
- 2 PNP safety outputs, 1 PNP signalling output.
- 2 PNP safety inputs for advanced control logic.
- 24 V DC supply voltage.
- 0.2 metre cable with M12 8-pole connector.
- Rear cable outlet for concealed wiring.
- Right-hand movable hinge configuration.
- 0° activation angle for precise detection.
- Integrated diagnostics LEDs for system status monitoring.
Advanced Safety Performance for Critical Applications
The HX series uses redundant electronic safety technology to achieve high safety performance levels, supporting applications up to PL e and SIL 3 when integrated into appropriate safety systems. This allows reliable protection of operators while simplifying system design.
Its integrated design ensures that the switch is concealed within the hinge, making it more resistant to tampering and improving overall machine safety. The stainless steel construction also enables use in hygienic and high-pressure washdown environments.
Typical Applications
- Food and beverage processing machinery.
- Pharmaceutical and cleanroom equipment.
- Chemical and corrosive environments.
- High-pressure washdown industrial systems.
- Packaging and production machinery.
- Safety-critical automation systems requiring PL e / SIL 3.
