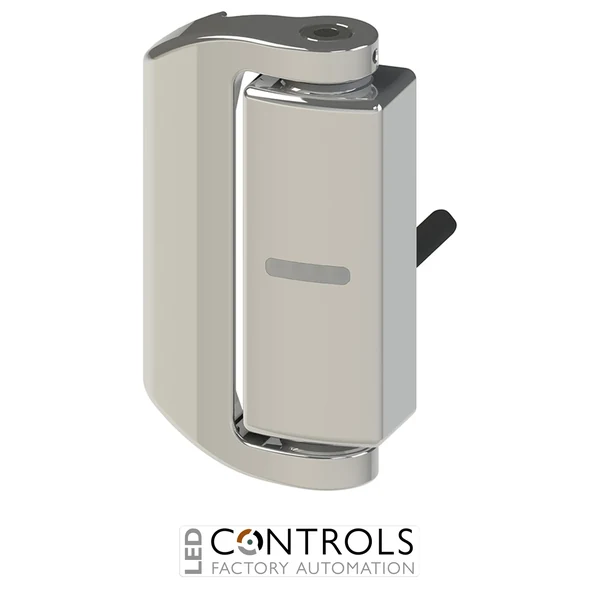

Why Choose the Pizzato HXBEE1-2QN Safety Hinge Switch?
The Pizzato HXBEE1-2QN is a high-performance stainless steel electronic safety hinge switch from the advanced HX series, engineered for precise monitoring of hinged safety guards in demanding industrial environments. Its integrated hinge design eliminates the need for external actuators, ensuring reliable, tamper-resistant operation and improved machine safety.
Constructed from AISI 316L stainless steel, this model is specifically designed for applications requiring high corrosion resistance and hygienic construction. It is ideally suited for industries such as food processing, pharmaceuticals and chemical manufacturing where durability and cleanliness are critical.
This version features an electronic contact block with LED diagnostics, providing 2 PNP safety outputs, 1 signalling output and 2 safety inputs. It operates on a 24 V DC supply and includes a 2 metre PVC cable with rear cable outlet. With IP67 and IP69K protection, it is built for harsh industrial and washdown environments.
Key Advantages
- Integrated electronic safety hinge switch eliminates actuator alignment issues.
- 2 PNP safety outputs with signalling and input channels.
- IP67 and IP69K protection for harsh and washdown environments.
- AISI 316L stainless steel housing for corrosion resistance.
- 2 m cable for flexible installation.
- LED diagnostics for simplified commissioning and fault detection.
Key Features
- Pizzato HX series stainless steel safety hinge switch.
- Electronic contact block with LED indicators.
- 2 PNP safety outputs (OSSD).
- 1 PNP signalling output.
- 2 PNP safety inputs.
- 24 V DC supply voltage.
- 2 metre PVC cable with rear outlet.
- Left-hand movable hinge configuration.
- 0° activation angle for precise detection.
- Silver contacts for reliable conductivity.
Advanced Electronic Safety for Critical Applications
The HX BEE1 series uses redundant electronic safety technology, enabling high safety performance levels up to PL e and SIL 3 when integrated into appropriate systems. This ensures reliable operator protection while simplifying installation and wiring.
Its integrated hinge design significantly reduces tampering risk and ensures consistent operation across high-cycle industrial machinery. The stainless steel construction also allows use in hygienic environments with frequent washdown or exposure to aggressive substances.
Typical Applications
- Food and beverage processing machinery.
- Pharmaceutical and cleanroom equipment.
- Chemical and corrosive environments.
- Washdown production lines.
- Packaging and automation systems.
- Safety-critical guard monitoring applications.
