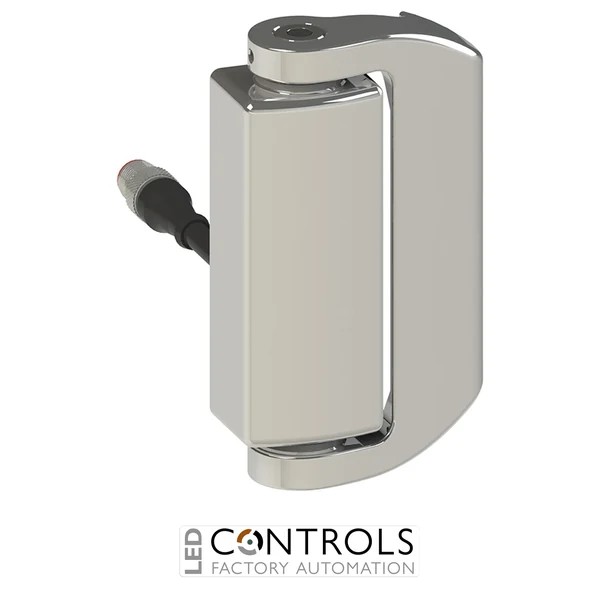

Why Choose the Pizzato HXBL22-0.2PM Safety Hinge Switch?
The Pizzato HXBL22-0.2PM is a high-performance stainless steel safety hinge switch from the advanced HX series, designed for reliable monitoring of hinged guards and access doors in demanding industrial environments. Its integrated hinge design eliminates the need for separate actuators, ensuring precise and tamper-resistant operation.
Manufactured from AISI 316L stainless steel, this model is specifically engineered for applications requiring high corrosion resistance and hygienic construction. It is ideal for industries such as food processing, pharmaceuticals and chemical manufacturing where durability and cleanliness are critical.
The HXBL22-0.2PM features a 2 NO + 2 NC contact configuration with slow action switching and positive opening, providing reliable performance in safety circuits. It includes a 0.2 metre cable with M12 8-pole connector and offers IP67 and IP69K protection, making it suitable for harsh and washdown environments.
Key Advantages
- Integrated safety hinge switch design removes actuator alignment issues.
- 2 NO + 2 NC contacts for flexible and redundant safety circuits.
- Slow action switching with positive opening for safety-critical applications.
- IP67 and IP69K protection for harsh and washdown environments.
- AISI 316L stainless steel housing for corrosion resistance.
- 0.2 m cable with M12 connector for fast, secure installation.
Key Features
- Pizzato HX series stainless steel hinge switch.
- 2 NO + 2 NC contact configuration.
- Slow action switching mechanism.
- Positive opening contacts for enhanced safety compliance.
- Supply voltage range: 24–250 V AC/DC.
- 0.2 metre PVC cable with M12 8-pole connector.
- Rear cable outlet for concealed wiring.
- Right-hand movable hinge configuration.
- 0° activation angle for precise detection.
- Silver contacts for reliable electrical performance.
Hygienic and High-Integrity Safety Design
The HX series is specifically developed for environments where hygiene, durability and safety are essential. The stainless steel housing and high ingress protection ratings allow installation in areas exposed to frequent washdown, moisture and aggressive chemicals.
By integrating the safety function directly into the hinge, the device improves system reliability and reduces the risk of tampering. This design also simplifies installation and ensures consistent guard monitoring in high-cycle industrial applications.
Typical Applications
- Food and beverage processing machinery.
- Pharmaceutical and cleanroom equipment.
- Chemical and corrosive industrial environments.
- Washdown and hygienic production lines.
- Packaging and automation systems.
- Safety-critical guard monitoring applications.
