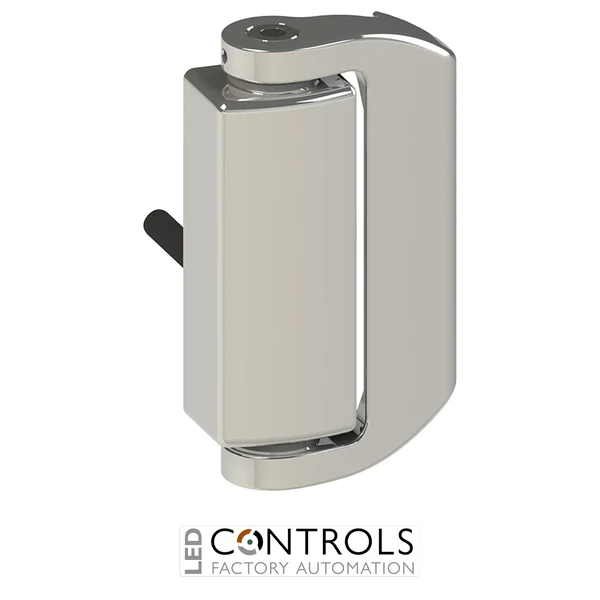

Why Choose the Pizzato HXBL22-12PN Safety Hinge Switch?
The Pizzato HXBL22-12PN is a heavy-duty safety hinge switch designed for monitoring guard doors and protective enclosures in industrial automation systems. As part of the durable Pizzato HX series, it integrates the switching mechanism directly into a hinge structure, ensuring reliable safety detection while maintaining a clean and tamper-resistant installation.
Manufactured from high-grade stainless steel, this switch is engineered for harsh environments where hygiene, durability and resistance to corrosion are essential. Its integrated hinge design allows seamless installation on machine guards, eliminating the need for separate actuators.
The HXBL22-12PN provides dependable safety monitoring with multiple contacts and a long pre-wired cable, making it ideal for complex industrial setups requiring extended wiring reach and robust performance.
Key Advantages
- Integrated safety hinge switch for machine guarding applications.
- Stainless steel housing for corrosion resistance and durability.
- 2 NO + 2 NC contacts for reliable safety circuit integration.
- High IP67 / IP69K protection rating for harsh environments.
- 12 metre pre-wired cable for flexible installation.
- Designed for tamper-resistant safety monitoring.
Key Features
- Pizzato HX series hinge safety switch.
- 2 NO + 2 NC slow-action contacts.
- Integrated hinge mechanism for direct mounting on guard doors.
- Positive opening contacts for safety compliance.
- 12 m PVC cable for extended connection range.
- High ingress protection IP67 / IP69K.
- Robust stainless steel construction (AISI-grade material).
Integrated Guard Monitoring for Industrial Safety
The Pizzato HXBL22-12PN is specifically designed to monitor the position of machine guards and safety doors. Its integrated hinge structure ensures that safety circuits are activated or interrupted based on the door position, preventing machine operation when guards are open.
This design not only improves safety reliability but also reduces installation complexity, as no separate actuator alignment is required. The concealed switching mechanism also enhances tamper resistance, improving overall system integrity.
Typical Applications
- Machine safety doors and guard monitoring systems.
- Food, pharmaceutical and hygienic processing equipment.
- Industrial automation and production lines.
- Robotics and automated manufacturing cells.
- Heavy-duty machinery and processing equipment.
- OEM machine building and safety system integration.
