Why Choose the Pizzato NG 2D1D311C-F31 Safety Switch with Lock?
The Pizzato NG 2D1D311C-F31 is an advanced RFID safety locking switch with integrated control devices designed for machine guard monitoring and safe access control in industrial automation systems. Part of the Pizzato NG series safety switches, this device combines coded RFID actuator recognition, solenoid locking and integrated operator controls in a single robust safety solution.

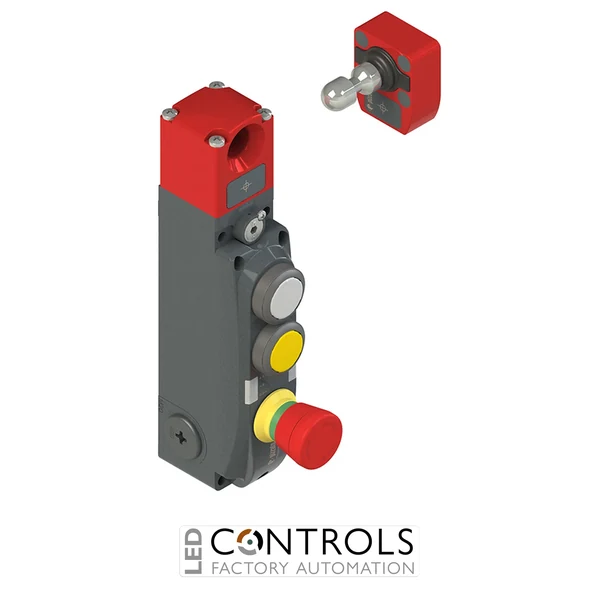

The NG 2D1D311C-F31 includes an integrated control device cover configuration with pushbuttons and an emergency stop button, allowing machine operators to control and monitor equipment directly from the guard position. Its RFID-coded actuator provides high protection against tampering while maintaining reliable guard monitoring performance.
With a metal housing, IP65 protection rating, rotating head and de-energised solenoid locking principle, the NG 2D1D311C-F31 is designed for demanding industrial environments where hazardous areas must remain secured until safe release conditions are met.
Key Advantages
- Advanced RFID-coded safety locking switch for machine guard protection.
- Integrated control devices reduce the need for additional operator components.
- High-coded F31 actuator technology improves protection against actuator substitution.
- Solenoid locking with de-energised locking principle for controlled access protection.
- Robust metal housing with IP65 protection for industrial environments.
- Suitable for safety applications requiring reliable guard monitoring.
Key Features
- Pizzato NG series RFID safety locking switch.
- VN NG-F31 high-coded RFID actuator included.
- Three integrated control devices.
- Position 1: white pushbutton with 1NO + 1NC contact.
- Position 2: yellow pushbutton with 1NO + 1NC contact.
- Position 3: red emergency stop button with rotary release and 2NC contacts.
- Rotating actuator head for flexible installation.
- Two safety inputs and two safety outputs.
- Actuator status and locking status signalling outputs.
- Three M20x1.5 threaded cable entries.
Advanced Guard Locking for Industrial Safety Systems
The Pizzato NG series provides machine builders with advanced safety locking technology for applications where dangerous machine movement must be prevented until access conditions are safe. RFID actuator coding provides reliable identification of the correct actuator while helping prevent bypass attempts.
The NG 2D1D311C-F31 integrates safety monitoring, locking control and operator interface functions into one device, reducing installation complexity while supporting modern machine safety architectures.
Typical Applications
- Machine guarding and safety door monitoring.
- Industrial automation equipment.
- Robotic cells and production lines.
- Packaging and processing machinery.
- Machines with hazardous areas requiring guard locking.
- OEM machine safety systems.
