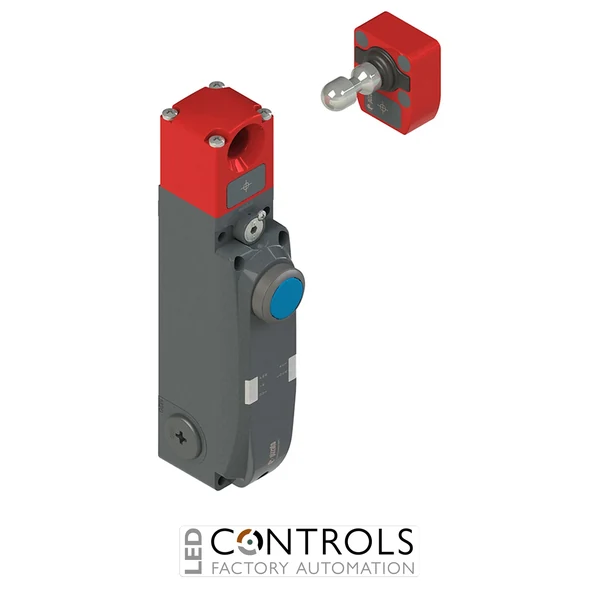

Why Choose the Pizzato NG 2D1D313G-F30 Safety Switch with Lock and Integrated Control Device?
The Pizzato NG 2D1D313G-F30 is an advanced NG series safety switch with solenoid guard locking, integrated control device and actuator designed for monitoring and controlling access to hazardous areas of industrial machinery. It combines electronic safety monitoring, mechanical guard locking and a local operator pushbutton within a robust metal-bodied device.
The NG 2D1D313G-F30 uses the D working principle, meaning the actuator remains locked when the solenoid is de-energised. Its two safety outputs become active when the actuator is correctly inserted and locked, while dedicated signalling outputs provide separate actuator-inserted and actuator-locked status information to the machine control system.
This configuration incorporates one green pushbutton with 1NO+1NC contacts directly into the switch cover and is supplied with the VN NG-F30 universal low-level coded actuator. The metal housing features a rotating head and three M20 × 1.5 threaded conduit entries, while the switch is supplied without a connector for direct wiring into the installation.
Key Advantages
- Combines safety monitoring, guard locking and local operator control in one device.
- Integrated green pushbutton with 1NO+1NC contacts reduces the need for a separate control enclosure.
- Power-to-unlock operation keeps the actuator locked when the solenoid is de-energised.
- High actuator holding force of up to 9750 N.
- Supplied complete with VN NG-F30 universal low-level coded actuator.
- Separate signalling outputs indicate actuator inserted and actuator locked conditions.
- Robust metal housing for demanding industrial machinery applications.
- Rotating head provides flexibility when installing the switch on different guard arrangements.
Key Features
- Pizzato NG series safety switch with guard locking.
- Integrated solenoid-operated locking mechanism.
- D working method: actuator locked with solenoid de-energised.
- One integrated green pushbutton, 1NO+1NC.
- Cover configuration with one integrated control device.
- 2 safety inputs IS1-IS2.
- 2 safety outputs OS1-OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- I4 or IE1-IE2 inputs for solenoid activation.
- I3 reset input.
- Safety outputs active with the actuator inserted and locked.
- Rotating head with freely removable actuator.
- Three M20 × 1.5 threaded conduit entries.
- Supplied without connector.
Integrated Guard Locking and Local Machine Control
Safety switches with guard locking are used where opening a machine guard before hazardous movement or processes have stopped could expose personnel to risk. The Pizzato NG 2D1D313G-F30 combines electronic guard monitoring with a high-strength locking mechanism, allowing the safety control system to verify that the actuator is both inserted and mechanically locked before enabling the appropriate safety outputs.
Integrating a green 1NO+1NC pushbutton directly into the switch cover provides a convenient local operator interface at the guarded access point. This can simplify machine layouts by combining guard-interlocking and operator-control functions within one assembly, while dedicated status outputs provide the control system with clear information about actuator insertion and locking.
Typical Applications
- Machine guard doors and access panels.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated production and assembly lines.
- Machining centres and machine tools.
- Conveyor and material handling equipment.
- Guarded access points requiring an integrated local pushbutton.
- Industrial machinery requiring locked access until safe conditions are reached.
