Why Choose the Pizzato NG 2D1D411C Safety Switch with Lock?
The Pizzato NG 2D1D411C is an advanced RFID safety locking switch with integrated control devices designed for secure machine guard monitoring and controlled access protection in industrial automation systems. Part of the Pizzato NG series safety switches, it combines RFID-coded actuator recognition, solenoid guard locking and integrated operator controls in a single robust safety device.
The NG 2D1D411C features integrated control devices including illuminated pushbuttons and an emergency stop button, allowing operators to control machine functions directly at the safety guard position. Its RFID-based actuator recognition provides reliable coded identification to help prevent unauthorised actuator substitution.
With a metal housing, IP65 protection rating, rotating head design and de-energised solenoid locking principle, the NG 2D1D411C is suitable for demanding industrial environments where hazardous machine access must remain controlled until safe operating conditions are achieved.
Key Advantages
- Advanced RFID-coded safety locking switch for industrial machine protection.
- Integrated control devices reduce additional operator interface components.
- High-level coded RFID actuator technology supports enhanced tamper resistance.
- De-energised solenoid locking keeps the actuator locked during power loss conditions.
- Robust metal housing with IP65 protection for industrial environments.
- Suitable for safety doors, machine guards and hazardous access points.
Key Features

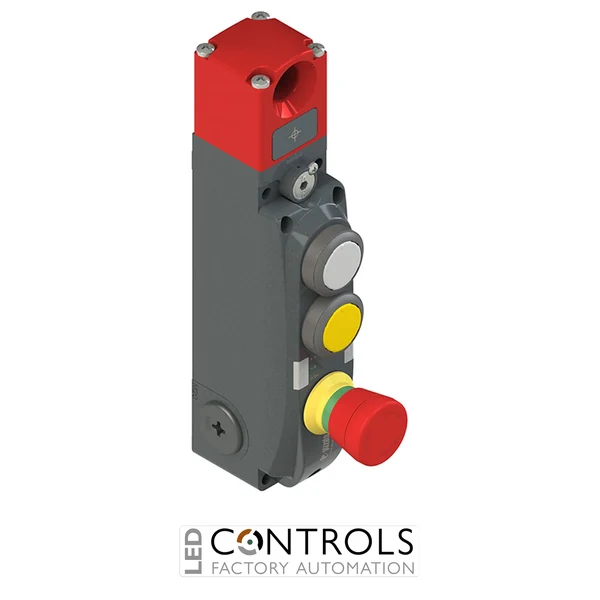

- Pizzato NG series RFID safety locking switch.
- Integrated control device cover with 3 devices.
- Position 1: white illuminated pushbutton with 1NO + 1NC contact.
- Position 2: yellow illuminated pushbutton with 1NO + 1NC contact.
- Position 3: red emergency stop button with rotary release and 2NC contacts.
- Rotating head for flexible installation.
- D working method with actuator locked by de-energised solenoid.
- Three threaded M20x1.5 conduit entries.
- RFID non-contact actuator detection system.
Advanced Guard Locking for Industrial Safety Systems
The Pizzato NG series provides machine builders with advanced RFID safety locking technology for applications where dangerous machine conditions may remain after shutdown due to inertia, pressure or temperature. The coded actuator system enables reliable identification while supporting high-level machine safety architectures.
The NG 2D1D411C combines safety locking, guard monitoring and operator control functions in one device, helping simplify machine installation while providing clear local control at protected access points.
Typical Applications
- Machine guarding and safety door monitoring.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Industrial automation equipment.
- Machines with hazardous access areas.
- OEM machine safety applications.
