Why Choose the Pizzato NG2D1D411E-F30 Safety Switch with Lock?

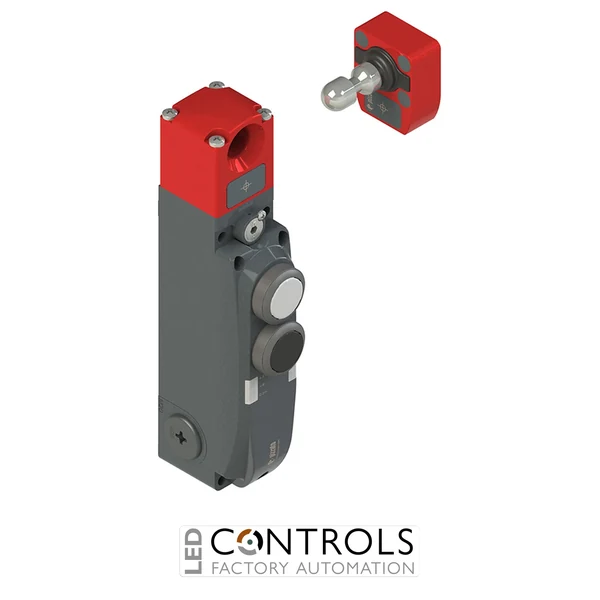

The Pizzato NG2D1D411E-F30 is an advanced NG series safety switch with guard locking and integrated control devices, designed for monitoring and securing movable guards, doors and access points on industrial machinery. It combines electronic guard monitoring, a robust locking mechanism and local operator controls in one integrated assembly, helping simplify machine-safety installations.
The NG2D1D411E-F30 uses Pizzato's D working method, meaning the actuator is locked when the solenoid is de-energised. The NG platform provides dual-channel electronic safety monitoring together with dedicated status signalling, allowing compatible safety control systems to supervise the condition of the guard and locking mechanism.
This configuration is supplied with the VN NG-F30 universal actuator, providing a complete switch-and-actuator solution for industrial guard interlocking. The NG series' robust metal construction, rotating head and integrated control interface make the NG2D1D411E-F30 particularly suitable for automated machinery where guard locking, safety monitoring and local machine commands are required at the same access point.
Key Advantages
- Combines guard monitoring, guard locking and integrated operator controls within one safety device.
- D working method keeps the actuator locked when the locking solenoid is de-energised.
- Electronic dual-channel safety architecture supports integration with compatible machine-safety controllers.
- Dedicated status signalling assists with monitoring actuator and guard-lock conditions.
- Supplied with the VN NG-F30 universal actuator for a matched guard-interlocking solution.
- Robust metal construction and rotating head provide durability and installation flexibility.
Key Features
- Pizzato NG series safety switch with lock.
- Electronic coded actuator detection.
- Integrated control devices for local machine commands.
- D working method: actuator locked with de-energised solenoid.
- Dual-channel electronic safety architecture.
- Dedicated safety inputs and outputs.
- Actuator and guard-lock status monitoring.
- Electronic solenoid control interface.
- Reset functionality for safety-system integration.
- Rotating actuator head for flexible installation.
- Heavy-duty metal housing.
- Supplied with VN NG-F30 universal actuator.
- Designed for industrial guard monitoring and locking applications.
Reliable Guard Locking and Electronic Safety Monitoring
The Pizzato NG series is engineered to monitor the condition of a machine guard while providing an electrically controlled mechanical lock. Electronic actuator detection allows the safety-related control system to determine the guard condition, while separate lock-status information supports machine sequencing, diagnostics and controlled access to hazardous areas.
With its de-energised-solenoid locking principle, the NG2D1D411E-F30 is suited to applications where the guard should remain mechanically locked without continuously energising the locking solenoid. The integrated control-device arrangement further reduces the need for separately mounted operator components around the guarded access point.
Typical Applications
- Machine guard doors and access panels.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Machine tools and machining centres.
- Assembly and manufacturing equipment.
- Guarded conveyors and material handling systems.
- Automated machinery requiring guard locking and local operator controls.
