Why Choose the Pizzato NG 2D1D411S-F31 Safety Switch with Lock?

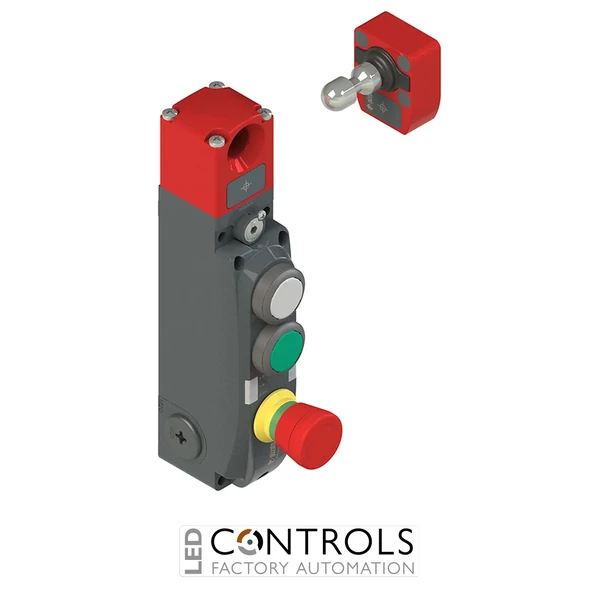

The Pizzato NG 2D1D411S-F31 is an advanced NG series RFID safety switch with guard locking and integrated control devices, designed for monitoring and securing movable guards, doors and access points on industrial machinery. It combines non-contact RFID actuator detection, robust guard locking and local operator-control functionality in a single industrial safety device.
As part of the Pizzato NG series, this safety switch provides digitally coded actuator recognition and electronic safety monitoring for demanding machine-guarding applications. The NG platform is designed to achieve high safety performance when correctly integrated into a suitable safety-related control system and supports series connection of multiple devices where required by the machine architecture.
The NG 2D1D411S-F31 is supplied with the VN NG-F31 high-coding-level actuator, which is individually coded so that the switch recognises its specific paired F31 actuator. A substantial 9750 N actuator holding force, metal housing and three M20 conduit entries make the NG series particularly suitable for robust industrial guard-locking installations.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated control devices in one assembly.
- Supplied with a VN NG-F31 high-coding-level actuator.
- Non-contact RFID actuator detection provides digitally coded guard monitoring.
- 9750 N actuator holding force provides robust guard retention.
- Metal housing provides durability for demanding industrial environments.
- Electronic safety architecture supports applications up to PL e and SIL 3 when correctly integrated.
- NG series supports series connection of up to 32 devices at PL e.
- Integrated control devices help consolidate machine safety and operator functions at guarded access points.
Key Features
- Pizzato NG series RFID safety switch with lock.
- VN NG-F31 high-coding-level actuator included.
- Non-contact actuation using RFID technology.
- Digitally coded actuator recognition.
- 9750 N actuator holding force.
- Integrated control devices for local machine operation.
- Electronic safety outputs for integration into safety-related control systems.
- Metal housing for industrial machine installations.
- Three M20 conduit entries for field wiring.
- Signalling LEDs provide visual status indication.
- NG series protection configurations available up to IP67 / IP69K.
- Designed for high-performance industrial machine guarding.
RFID Guard Monitoring and Robust Safety Locking
Safety switches with guard locking are used where a machine guard must remain secured while hazardous movement or processes are present. The Pizzato NG series combines RFID-based actuator recognition with electronic safety monitoring and a high-force locking mechanism, allowing both guard position and access control to form part of the machine's safety-related control system.
The F31 actuator provides a high coding level by allowing the switch to recognise a specifically paired actuator rather than any actuator of the same general type. This helps provide a high level of coding for machine-safety applications, while the integrated control devices allow operator functions to be positioned directly alongside the guard-monitoring and locking system.
Typical Applications
- Industrial machine guard doors and access gates.
- Robotic cells and safeguarded automation areas.
- Automated manufacturing and assembly machinery.
- Packaging and processing equipment.
- Material handling and conveyor systems.
- Machine tools and automated production equipment.
- Production cells requiring high-coding-level guard monitoring.
- Applications requiring RFID guard monitoring with integrated operator controls.
