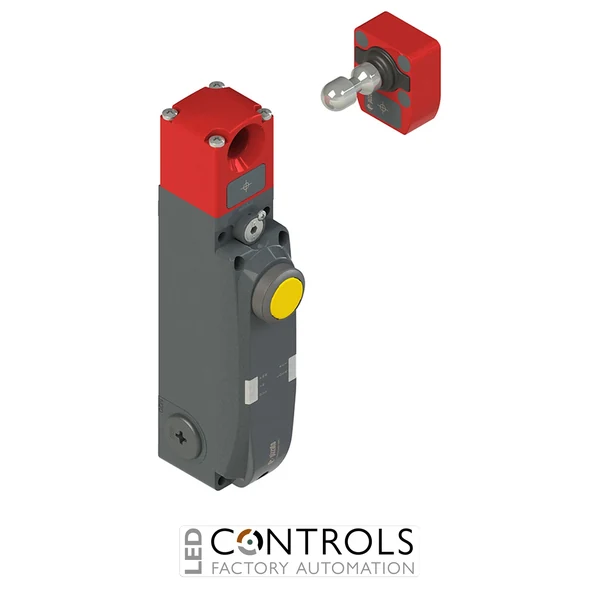

Why Choose the Pizzato NG2D1D412J-F31 Safety Switch with Lock?
The Pizzato NG2D1D412J-F31 is an advanced NG series safety switch with guard locking and integrated control devices, designed for monitoring and securing movable guards, doors and access points on industrial machinery. The NG platform combines electronic actuator detection, controlled guard locking and operator-interface functions in one robust assembly, helping simplify safety installations around guarded machine access points.
The NG2D1D412J-F31 uses Pizzato's D working method, in which the actuator is locked when the solenoid is de-energised. Its electronic safety architecture provides redundant safety channels together with actuator and locking-status information, allowing the switch to interface with compatible safety controllers and machine automation systems.
This configuration is supplied with the VN NG-F31 high-coding-level actuator. The combination of coded actuator detection, robust metal construction, a rotating actuator head and integrated control devices makes the NG2D1D412J-F31 suitable for demanding automated machinery where reliable guard retention, safety monitoring and local operator functions are required.
Key Advantages
- Combines electronic guard monitoring, guard locking and integrated operator controls within one device.
- D working method keeps the actuator locked when the locking solenoid is de-energised.
- Supplied with a VN NG-F31 high-coding-level actuator for enhanced coded guard identification.
- Redundant electronic safety channels support integration with compatible machine-safety controllers.
- Separate actuator and locking-status information supports machine sequencing and diagnostics.
- Robust metal construction and rotating head provide durability and flexible machine installation.
Key Features
- Pizzato NG series safety switch with guard lock.
- Electronic coded actuator detection.
- High-coding-level actuator.
- Integrated control devices for local operator functions.
- D working method: actuator locked with de-energised solenoid.
- Redundant electronic safety architecture.
- Dedicated safety inputs and safety outputs.
- Actuator-presence and guard-lock status monitoring.
- Electronic solenoid control interface.
- Reset functionality for integration into the safety system.
- Rotating actuator head for flexible actuator approach.
- Heavy-duty metal housing.
- Supplied with VN NG-F31 actuator.
Reliable High-Coded Guard Locking and Safety Monitoring
The Pizzato NG series combines electronic coded actuator detection with a mechanical guard-locking mechanism. This allows a compatible safety-related control system to monitor the guarded access point while the lock retains the actuator when required, helping prevent access to hazardous machine areas until release is permitted by the machine control system.
The de-energised-solenoid locking principle makes the NG2D1D412J-F31 suitable for applications where a guard must remain mechanically locked without continuously energising the locking solenoid. Its VN NG-F31 high-coding-level actuator adds enhanced coded identification, while the integrated control devices provide convenient local operator functions at the guarded access point.
Typical Applications
- Machine guard doors and access panels.
- Robotic cells and automated production lines.
- Packaging and processing machinery.
- Machine tools and machining centres.
- Assembly and manufacturing equipment.
- Guarded conveyor and material handling systems.
- Automated machinery requiring high-coded guard locking and local operator controls.
