Why Choose the Pizzato NG 2D1D413E-F31 Safety Switch with Lock?

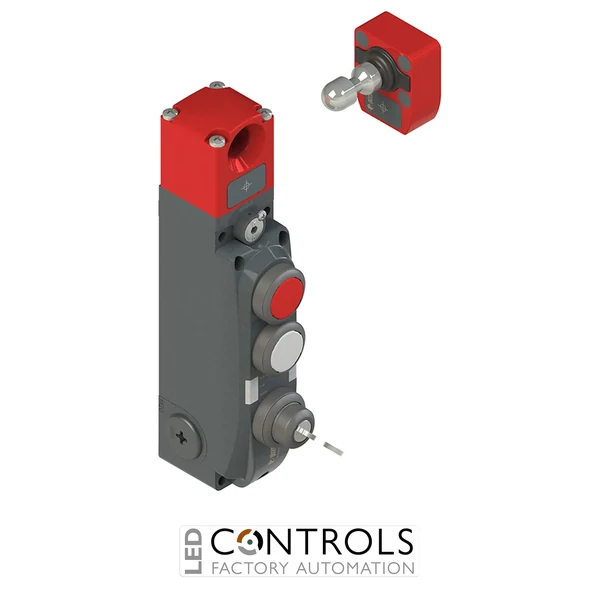

The Pizzato NG 2D1D413E-F31 is an advanced RFID safety switch with guard locking and integrated control devices designed for secure monitoring of protective guards, doors and access points on industrial machinery. Part of the Pizzato NG series, it combines electronically coded actuator detection, robust mechanical guard locking and local operator controls within a single industrial safety assembly.
This configuration uses the D working principle, with the actuator locked while the locking electromagnet is de-energised. Its electronic safety architecture provides two IS1–IS2 safety inputs and two OS1–OS2 safety outputs, together with dedicated signalling outputs for actuator insertion and locking status. Mode 1 operation allows the safety outputs to become active when the actuator is inserted and securely locked.
The NG 2D1D413E-F31 features a three-device integrated control configuration and is supplied with the VN NG-F31 high-level coded RFID actuator. The NG platform provides a maximum actuator holding force of 9,750 N, while its robust metal housing, orientable head and integrated controls make it well suited to demanding automated machinery and production systems.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated operator controls within one device.
- Three-device control configuration provides local operator functionality directly at the guarded access point.
- Supplied with a VN NG-F31 high-level coded RFID actuator for enhanced protection against manipulation.
- 9,750 N maximum actuator holding force provides secure retention of protective guards.
- De-energised locking principle keeps the actuator locked when power to the locking electromagnet is removed.
- Two electronic safety outputs support straightforward integration with machine safety controllers.
- Dedicated status outputs allow separate monitoring of actuator insertion and guard locking.
- Robust construction supports demanding industrial automation environments.
Key Features
- Pizzato NG series RFID safety switch with lock and integrated control devices.
- Three-device integrated control configuration.
- VN NG-F31 high-level coded RFID actuator supplied with the switch.
- D working principle with actuator locked when the electromagnet is de-energised.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- Electromagnet control through dedicated electronic inputs.
- Dedicated actuator programming and reset input.
- Mode 1 safety output activation with actuator inserted and locked.
- 9,750 N maximum holding force.
- Integrated status indication for machine diagnostics.
- Metal housing designed for industrial machinery.
- Orientable operating head for flexible mounting.
- Three threaded M20 × 1.5 cable entries.
Reliable Guard Monitoring and Operator Control for Industrial Machinery
RFID safety switches with guard locking allow a machine safety system to verify that a protective guard is correctly positioned and securely locked before hazardous machine operation is permitted. The Pizzato NG series combines coded RFID actuator detection with electronic safety outputs and high-strength mechanical locking, providing dependable monitoring for automated machinery and production equipment.
The integrated three-device control configuration allows operator commands to be positioned directly alongside the guard interlock, helping simplify machine layouts and reduce the requirement for separate control stations. Dedicated actuator and locking status signals also provide the machine control system with clear information for safety logic, diagnostics and process management.
Typical Applications
- Machine guard doors and protective access panels.
- Automated production and assembly machinery.
- Robotic cells and safeguarded manufacturing areas.
- Packaging and processing equipment.
- Conveyor and material handling systems.
- Machine tools and automated manufacturing equipment.
- Industrial machinery requiring secure guard locking and integrated operator controls.
