Why Choose the Pizzato NG 2D1D413V-F30 Safety Switch?

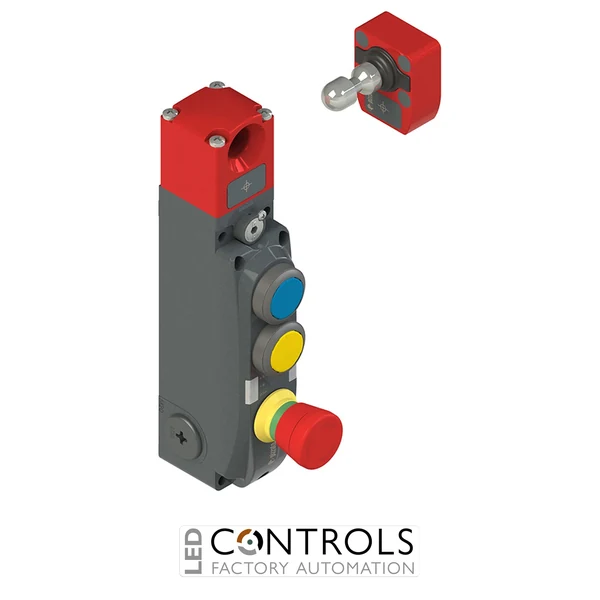

The Pizzato NG 2D1D413V-F30 is an advanced RFID safety switch with guard locking and integrated control devices designed for monitoring and controlling access to hazardous areas of industrial machinery. As part of the Pizzato NG series, it combines coded actuator detection, robust guard locking and operator controls in a durable metal housing for demanding machine safety applications.
The NG 2D1D413V-F30 uses working method D, meaning the actuator remains locked when the solenoid is de-energised. Its two electronic safety outputs become active when the actuator is inserted and locked, while dedicated signalling outputs provide information on actuator insertion and locking status for integration with machine control and safety systems.
Supplied complete with the VN NG-F30 universal actuator with low coding level, this model also incorporates three operator control devices: a blue pushbutton, a yellow pushbutton and a red emergency stop button. A robust metal enclosure, rotating head and three threaded M20 × 1.5 conduit entries provide flexible installation on industrial machine guards and access doors.
Key Advantages
- Combines RFID safety monitoring, guard locking and operator controls in one device.
- Working method D keeps the actuator locked with the solenoid de-energised.
- Supplied complete with a VN NG-F30 universal low-coding-level actuator.
- Two safety inputs and two safety outputs support integration into machine safety systems.
- Dedicated signalling outputs indicate actuator inserted and actuator locked conditions.
- Integrated blue and yellow pushbuttons provide local machine control functions.
- Integrated red emergency stop button provides an accessible machine stopping control.
- High 9750 N locking force provides robust guard retention.
- Durable metal construction and industrial protection suit demanding machinery environments.
Key Features
- Pizzato NG series RFID safety switch with lock.
- Complete with VN NG-F30 universal actuator.
- Low actuator coding level.
- D working method with actuator locked when the solenoid is de-energised.
- 9750 N locking force.
- 2 safety inputs IS1-IS2.
- 2 safety outputs OS1-OS2.
- O3 signalling output indicates actuator insertion.
- O4 signalling output indicates actuator locked status.
- I4 or IE1-IE2 inputs provide solenoid activation.
- I3 input provides actuator programming / reset functionality.
- Activation mode 1, with safety outputs active when the actuator is inserted and locked.
- Three integrated operator control devices.
- Rotating head for flexible installation.
- Metal housing with three threaded M20 × 1.5 conduit entries.
- Supplied without connector for direct installation wiring.
Reliable Guard Locking for Industrial Machinery
Guard locking safety switches are used where a machine access point must remain secured until hazardous conditions have ended. The Pizzato NG 2D1D413V-F30 combines RFID-based actuator monitoring with a high-force locking mechanism, enabling the position and locked condition of a guard to be monitored by the machine safety system.
The integrated electronic safety inputs and outputs simplify connection to compatible safety controllers, while separate status outputs allow the automation system to monitor whether the actuator is inserted and locked. Combining these safety functions with local pushbuttons and an emergency stop device can also reduce the number of separate control components required around a guarded machine access point.
Typical Applications
- Industrial machine guards and safety doors.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Automated assembly and manufacturing equipment.
- Machinery with hazardous run-down or stopping times.
- Machine access points requiring guard locking.
- Equipment requiring integrated local operator controls.
- Industrial safety and factory automation systems.
