Why Choose the Pizzato NG 2D1D413W-F31 Safety Switch?

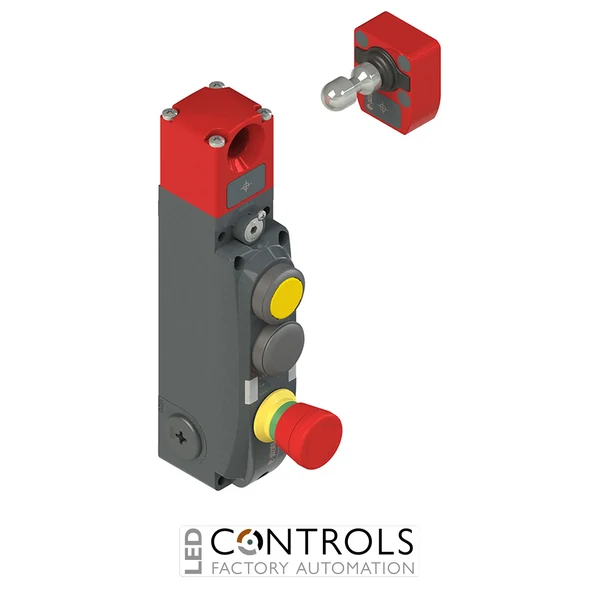

The Pizzato NG 2D1D413W-F31 is a robust RFID safety switch with guard locking and integrated control devices designed for monitoring and controlling access to hazardous areas of industrial machinery. As part of the advanced Pizzato NG series, it combines coded non-contact actuator detection, high-force guard locking and local operator controls within a durable metal housing.
The NG 2D1D413W-F31 operates according to working method D, meaning the actuator remains locked while the electromagnet is de-energised. Its electronic safety outputs use activation mode 1 and become active when the actuator is inserted and securely locked. Dedicated signalling outputs provide separate indication of actuator insertion and locking status for integration with machine safety and automation systems.
Supplied complete with the VN NG-F31 high-coding-level actuator, this model provides enhanced protection against inappropriate actuator substitution or manipulation. The integrated control station features a yellow pushbutton, a blanking plug and a red turn-to-release emergency stop button, while the switch provides a substantial 9750 N actuator locking force for demanding machine guarding applications.
Key Advantages
- Combines RFID guard monitoring, guard locking and operator controls in one industrial device.
- Supplied with a VN NG-F31 high-coding-level actuator.
- 9750 N actuator locking force provides robust guard retention.
- Working method D keeps the actuator locked while the electromagnet is de-energised.
- Two safety inputs and two safety outputs support integration with machine safety systems.
- Separate signalling outputs indicate actuator inserted and actuator locked conditions.
- Integrated yellow pushbutton and red emergency stop button provide convenient local operator controls.
- Auxiliary release provides a practical means of manually releasing the locking mechanism when required.
- Durable metal housing is designed for demanding industrial machinery environments.
Key Features
- Pizzato NG series safety switch with guard locking.
- Non-contact safety actuation using RFID technology.
- VN NG-F31 high-coding-level actuator included.
- 9750 N actuator locking force.
- D working method with actuator locked when the electromagnet is de-energised.
- 2 safety inputs IS1-IS2.
- 2 safety outputs OS1-OS2.
- O3 signalling output for actuator inserted status.
- O4 signalling output for actuator locked status.
- I4 or IE1-IE2 inputs for electromagnet activation.
- I3 input for actuator programming / reset.
- Activation mode 1, with safety outputs active when the actuator is inserted and locked.
- Integrated yellow pushbutton with 1NC+1NO contacts.
- Integrated red turn-to-release emergency stop button with 2NC contacts.
- Rotating head for flexible installation orientation.
- Metal housing with three threaded M20 × 1.5 cable entries.
- Connection configuration without connector.
Reliable Guard Locking for Industrial Machinery
Safety switches with guard locking are particularly suitable for machinery where hazardous conditions can continue after a stop command has been issued, such as equipment containing rotating components with significant inertia, hot parts or pressurised processes. The Pizzato NG series allows a machine guard to remain locked until the safety control system determines that access can be permitted.
The NG 2D1D413W-F31 combines RFID-based actuator monitoring with electronic safety outputs and a high-force locking mechanism. Its separate status outputs allow the control system to distinguish between an inserted actuator and a securely locked actuator, while integrated operator controls help reduce the need for separate control components around the guarded access point.
Typical Applications
- Industrial machine guards and safety doors.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Automated assembly and manufacturing equipment.
- Machinery with hazardous run-down or stopping times.
- Equipment containing rotating, hot or pressurised hazards.
- Machine access points requiring integrated operator controls.
- Industrial safety and factory automation systems.
