Why Choose the Pizzato NG 2D1D414U-F30 Safety Switch?

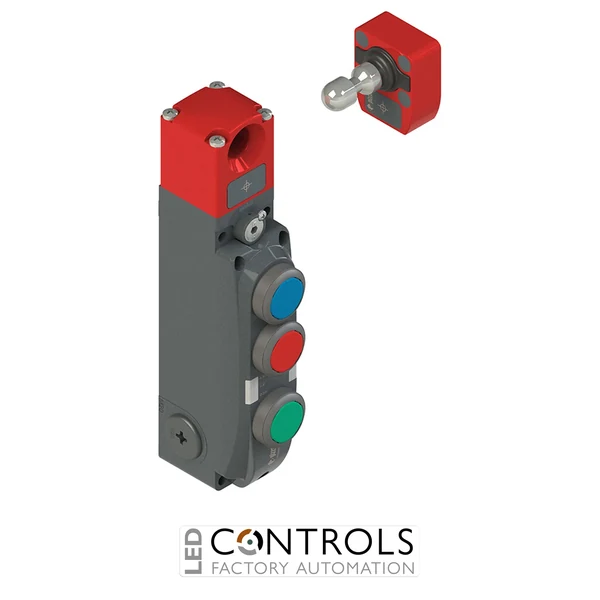

The Pizzato NG 2D1D414U-F30 is an advanced NG series safety switch with guard locking and integrated control devices, designed for reliable monitoring and locking of guards, doors and access points on industrial machinery. Combining electronic safety outputs, actuator monitoring and a robust locking mechanism in one device, it provides an integrated solution for modern machine safety systems.
This NG series switch uses the D working method, keeping the actuator locked while the solenoid is de-energised. It incorporates two safety inputs and two safety outputs together with dedicated signalling outputs for actuator insertion and actuator locking, enabling detailed status information to be communicated to the machine control system.
The NG 2D1D414U-F30 features a durable metal housing with a rotating head and three threaded M20 × 1.5 conduit entries. It is supplied complete with the VN NG-F30 universal actuator with low coding level, while its three-device cover configuration provides integrated machine-control functionality directly at the guard access point.
Key Advantages
- Integrated safety monitoring and guard locking in one industrial device.
- De-energised solenoid locking helps maintain guard locking when power to the solenoid is removed.
- Two safety inputs and two electronic safety outputs support integration into machine safety circuits.
- Separate signalling outputs provide information for actuator inserted and actuator locked status.
- Supplied with a VN NG-F30 universal actuator for straightforward guard installation.
- Robust metal housing and rotating head suit demanding industrial machinery.
- Integrated control devices help reduce the need for separate operator-control components around guarded access points.
Key Features
- Pizzato NG series safety switch with lock and integrated control devices.
- D working method with actuator locked when the solenoid is de-energised.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- Signalling output O3 for actuator inserted status.
- Signalling output O4 for actuator locked status.
- Solenoid activation through I4 or IE1–IE2 inputs.
- I3 input for actuator programming / reset.
- Safety outputs active with the actuator inserted and locked.
- Complete with VN NG-F30 universal actuator with low coding level.
- Rotating head for flexible mechanical installation.
- Three-device cover configuration with integrated controls.
Reliable Guard Locking for Industrial Machinery
Safety switches with guard locking are used where access to a hazardous machine area must be monitored and controlled. The Pizzato NG 2D1D414U-F30 combines actuator detection, locking status monitoring and electronic safety outputs, allowing the machine safety system to verify that the guard is correctly inserted and locked before hazardous operation is permitted.
The de-energised locking principle makes the NG 2D1D414U-F30 particularly suitable for machinery where maintaining guard locking without continuous solenoid energisation is desirable. Its integrated status outputs also give the control system clear information about the condition of the actuator and lock, while the integrated control devices provide convenient operator functions directly at the guarded access point.
Typical Applications
- Machine guard doors and movable protective guards.
- Automated production and assembly machinery.
- Packaging and processing equipment.
- Robotic cells and automated manufacturing systems.
- Conveyor and material handling machinery.
- Industrial machinery requiring controlled access to hazardous areas.
- OEM machine-building and factory automation systems.
