Why Choose the Pizzato NG 2D1D414W-F30 Safety Switch?

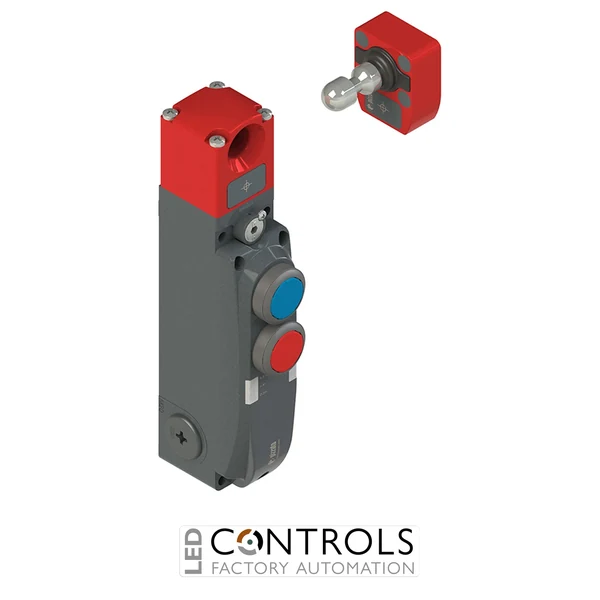

The Pizzato NG 2D1D414W-F30 is an advanced NG series safety switch with lock and integrated control devices, designed for reliable monitoring and locking of movable guards, doors and access points on industrial machinery. Combining electronic safety monitoring, guard locking and operator controls within one robust assembly, it provides a practical solution for modern machine safety and automation systems.
The NG 2D1D414W-F30 uses the D working method, with the actuator locked when the solenoid is de-energised. Its electronic architecture provides two safety inputs and two safety outputs, together with dedicated signalling outputs for actuator insertion and actuator locking, allowing the machine control system to monitor guard status accurately.
This configuration incorporates two integrated pushbuttons: a blue pushbutton with 1NO contact in position 1 and a red pushbutton with 1NO contact in position 2. The switch has a durable metal housing, rotating head and three threaded M20 × 1.5 conduit entries, and is supplied complete with the VN NG-F30 universal actuator with low coding level.
Key Advantages
- Combines guard monitoring, guard locking and operator controls in one device.
- De-energised solenoid locking maintains the actuator in the locked condition without continuous solenoid energisation.
- Two safety inputs and two electronic safety outputs for integration into safety-related control systems.
- Separate signalling outputs indicate actuator inserted and actuator locked status.
- Integrated blue and red pushbuttons provide convenient local machine-control functions.
- Supplied complete with a VN NG-F30 universal actuator.
- Robust metal housing and rotating head support demanding industrial installations.
Key Features
- Pizzato NG series safety switch with lock and integrated control devices.
- D working method with actuator locked when the solenoid is de-energised.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- Signalling output O3 for actuator inserted status.
- Signalling output O4 for actuator locked status.
- I4 or IE1–IE2 inputs for solenoid activation.
- I3 input for actuator programming / reset.
- Safety outputs active with the actuator inserted and locked.
- Position 1: blue pushbutton, 1NO.
- Position 2: red pushbutton, 1NO.
- Complete with VN NG-F30 universal actuator with low coding level.
- Rotating head for flexible mechanical installation.
Reliable Guard Locking for Industrial Machinery
Safety switches with guard locking are used where access to hazardous machine areas must remain controlled until safe operating conditions have been achieved. The Pizzato NG 2D1D414W-F30 combines actuator detection, lock monitoring and electronic safety outputs so that the machine safety system can verify that a movable guard is correctly inserted and locked.
Its integrated blue and red pushbuttons allow useful operator-control functions to be positioned directly at the guarded access point, reducing the need for separate control stations in suitable applications. Together with its robust metal construction, rotating head and dedicated status outputs, this makes the NG 2D1D414W-F30 well suited to sophisticated industrial automation and machine-building systems.
Typical Applications
- Machine guard doors and movable protective guards.
- Automated production and assembly machinery.
- Packaging and processing equipment.
- Robotic cells and automated manufacturing systems.
- Conveyor and material handling machinery.
- Industrial machinery requiring controlled access to hazardous areas.
- OEM automation systems and machine building.
