Why Choose the Pizzato NG 2D1D415T-F30 Safety Switch?

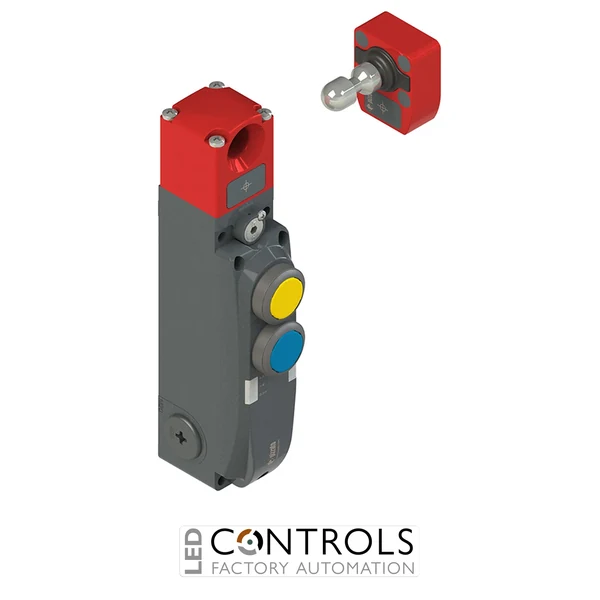

The Pizzato NG 2D1D415T-F30 is an advanced RFID safety switch with guard locking and integrated control devices designed for monitoring and controlling access to hazardous areas of industrial machinery. As part of the Pizzato NG series, it combines electronic guard monitoring, actuator locking and local operator controls in a robust industrial assembly.
The NG series uses RFID actuator detection and redundant electronic technology to provide reliable monitoring of machine guards and access doors. Guard locking enables the protected access point to remain secured while hazardous machine conditions are present, making the NG 2D1D415T-F30 particularly suitable for machinery with run-down times, moving components or processes that cannot be accessed safely immediately after a stop command.
Supplied with the VN NG-F30 universal actuator, the NG 2D1D415T-F30 provides a complete guard monitoring and locking solution for industrial machinery. Integrated control devices allow local machine functions to be positioned directly at the guarded access point, helping machine builders reduce the number of separate components required around safety doors and machine enclosures.
Key Advantages
- Combines RFID safety monitoring, guard locking and integrated operator controls in one device.
- Supplied with a VN NG-F30 universal actuator.
- RFID actuator detection provides coded electronic monitoring of machine guards.
- Guard locking helps prevent access while hazardous machine conditions remain present.
- Redundant electronic architecture supports dependable machine safety monitoring.
- Electronic safety outputs support integration with compatible safety controllers.
- Integrated control devices reduce the requirement for separate operator stations.
- Robust construction is suitable for demanding industrial automation environments.
Key Features
- Pizzato NG series safety switch with lock.
- Non-contact guard monitoring using RFID technology.
- VN NG-F30 universal actuator included.
- Low actuator coding level.
- Integrated guard-locking mechanism.
- Redundant electronic safety architecture.
- Electronic safety outputs for integration with machine safety systems.
- Integrated operator control devices.
- Designed for industrial machine guards and protected access doors.
- Suitable for automated machinery and factory safety systems.
Reliable Guard Locking for Industrial Machinery
Safety switches with guard locking are designed for applications where detecting an open guard alone does not provide sufficient protection. Machinery containing rotating components, mechanical inertia, heat, pressure or other persistent hazards may require the access guard to remain locked until the hazardous condition has ended.
The Pizzato NG series combines RFID-based guard detection, electronic safety technology and mechanical guard locking in a single device. The NG 2D1D415T-F30 also incorporates operator controls, allowing safety monitoring and local machine control functions to be conveniently located at the same guarded access point.
Typical Applications
- Industrial machine guards and safety doors.
- Robotic cells and automated production systems.
- Packaging and processing machinery.
- Automated assembly and manufacturing equipment.
- Machinery with hazardous run-down or stopping times.
- Equipment containing rotating, hot or pressurised hazards.
- Machine access points requiring integrated operator controls.
- Industrial safety and factory automation systems.
