Why Choose the Pizzato NG 2D1D416B-F31 Safety Switch with Lock?
The Pizzato NG 2D1D416B-F31 is an advanced RFID safety switch with guard locking and integrated control devices designed for monitoring and securing protective guards, doors and access points on industrial machinery. Part of the Pizzato NG series, it combines electronically coded actuator detection, robust mechanical guard locking and local operator controls within a single industrial safety assembly.
This model uses the D working principle, meaning the actuator remains locked while the locking electromagnet is de-energised. Its electronic safety architecture provides two IS1–IS2 safety inputs and two OS1–OS2 safety outputs, together with dedicated signalling outputs for actuator insertion and locking status. This allows the machine safety system to verify that the guard is correctly positioned and securely locked before hazardous operation is permitted.

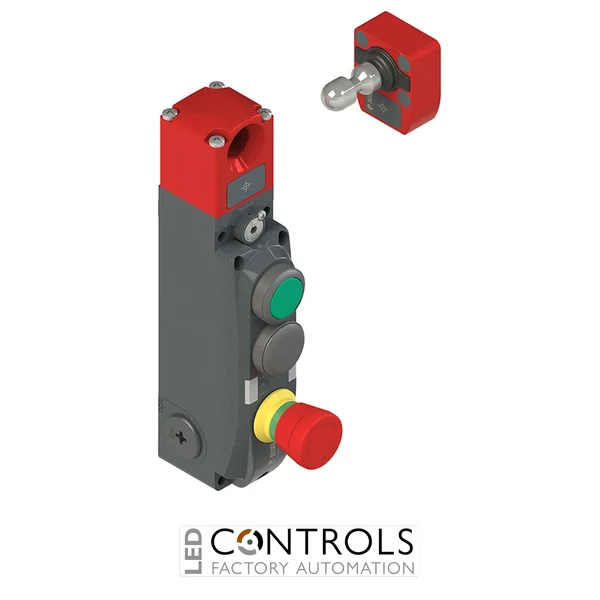

The NG 2D1D416B-F31 is supplied complete with the VN NG-F31 high-level coded RFID actuator and features an integrated control-device configuration for local machine commands. The NG platform provides a maximum actuator holding force of 9,750 N, making it suitable for demanding automated machinery where secure guard locking, coded monitoring and convenient operator controls are required.
Key Advantages
- Combines RFID guard monitoring, guard locking and integrated operator controls within one assembly.
- Supplied with a VN NG-F31 high-level coded RFID actuator for enhanced protection against manipulation.
- 9,750 N maximum actuator holding force provides secure retention of protective machine guards.
- De-energised locking principle keeps the actuator locked when the locking electromagnet is not energised.
- Electronic safety outputs simplify integration with modern machine safety controllers.
- Dedicated status outputs allow separate monitoring of actuator insertion and guard locking.
- Integrated controls help reduce the requirement for separate operator control stations.
- Robust industrial construction supports demanding machine safety applications.
Key Features
- Pizzato NG series RFID safety switch with lock and integrated control devices.
- RFID coded actuator detection.
- VN NG-F31 high-level coded actuator supplied with the switch.
- D working principle with actuator locked when the electromagnet is de-energised.
- 2 safety inputs IS1–IS2.
- 2 safety outputs OS1–OS2.
- O3 signalling output for actuator-inserted status.
- O4 signalling output for actuator-locked status.
- Dedicated electromagnet control input architecture.
- Actuator programming and reset functionality.
- Integrated operator control devices.
- 9,750 N maximum holding force.
- Integrated status indication for machine diagnostics.
- Metal housing designed for industrial machinery.
- Orientable operating head for flexible installation.
- Three threaded M20 × 1.5 cable entries.
Reliable Guard Monitoring and Operator Control for Industrial Machinery
RFID safety switches with guard locking allow a machine safety system to verify the position and locking condition of a protective guard before hazardous operation is permitted. The Pizzato NG series combines electronically coded actuator recognition with redundant safety electronics and high-strength mechanical locking, providing dependable protection for automated machinery and production equipment.
The integrated control-device design allows local operator commands to be positioned directly alongside the safety interlock, helping simplify machine layouts and reduce the need for separate control stations. Dedicated actuator and locking status signals also provide useful information for safety logic, machine diagnostics and process control.
Typical Applications
- Machine guard doors and protective access panels.
- Automated production and assembly machinery.
- Robotic cells and safeguarded manufacturing areas.
- Packaging and processing equipment.
- Conveyor and material handling systems.
- Machine tools and automated manufacturing equipment.
- Industrial machinery requiring secure guard locking and integrated operator controls.
