Why Choose the Pizzato NG 2D1D419B-F31 Safety Switch?

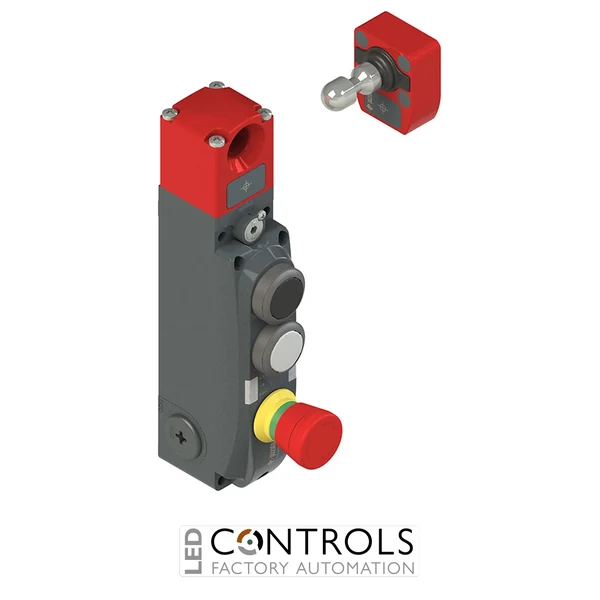

The Pizzato NG 2D1D419B-F31 is an advanced NG series safety switch with lock and integrated control devices, designed for reliable monitoring and locking of movable guards, doors and access points on industrial machinery. Combining electronic safety monitoring, guard locking and local operator-control functionality in one assembly, it provides a comprehensive solution for modern machine safety and automation systems.
As part of the Pizzato NG series, the NG 2D1D419B-F31 uses electronic actuator detection and redundant safety technology to monitor the position and locking state of a protective guard. The NG platform provides dedicated safety and signalling functions so that a suitable safety-related control system can determine whether the actuator is correctly inserted and securely locked before hazardous machine operation is permitted.
The NG 2D1D419B-F31 is supplied with the VN NG-F31 actuator with high coding level. Its robust metal housing, rotating-head architecture and integrated control-device format make it particularly suitable for automated machinery where dependable guard locking and convenient local operator controls are required at the same access point.
Key Advantages
- Combines guard monitoring, guard locking and integrated control devices in one industrial assembly.
- Electronic safety technology provides reliable monitoring of guard and lock status.
- High-coded actuator supports enhanced protection against inappropriate actuator substitution.
- Guard locking helps control access while hazardous machine conditions remain.
- Integrated operator controls help reduce the need for separate control stations around guarded access points.
- Robust metal housing is designed for industrial machine installations.
- Supplied complete with the specified VN NG-F31 actuator.
Key Features
- Pizzato NG series safety switch with lock and integrated control devices.
- Electronic monitoring of actuator insertion and locking status.
- Safety-related electronic outputs for machine safety integration.
- Dedicated signalling functions for guard and lock status.
- Integrated control-device configuration for local machine operation.
- High coding level VN NG-F31 actuator.
- Robust metal housing.
- NG-series rotating-head design for flexible installation.
- Designed for movable guards and protected machine access points.
- Suitable for industrial automation and OEM machine-building applications.
Reliable Guard Locking for Industrial Machinery
Guard-locking safety switches are used where monitoring whether a protective guard is open or closed is not sufficient on its own. On machinery where hazardous movement, stored energy or production processes can remain after a stop command, the locking function can keep the guard secured until the machine safety system determines that access can safely be permitted.
The Pizzato NG series combines guard locking with electronic actuator monitoring and safety outputs in a compact industrial platform. The integrated control-device arrangement also allows useful operator functions to be positioned directly at the guarded access point, providing a coordinated approach to machine guarding, access control and local machine operation.
Typical Applications
- Machine guard doors and movable protective guards.
- Robotic cells and automated manufacturing systems.
- Packaging and processing machinery.
- Automated production and assembly equipment.
- Conveyor and material handling systems.
- Machinery where hazardous conditions can remain after stopping.
- OEM machinery and factory automation installations.
